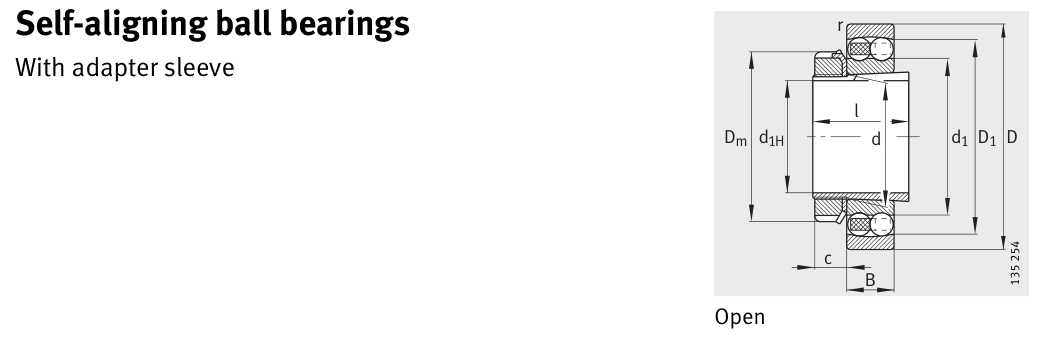

Original catalogue drawing - FAG Schaeffler HR 1, page 352
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
100
3.937
D
Outside diameter
180
7.0866
B
Inner-ring / bearing width
34
1.3386
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
100
Outside dia. D (mm)
180
Width B (mm)
34
Inner-ring OD d1 (mm)
127.7
Inner-ring shoulder dia. D1 (mm)
155.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
15737
Basic static load rating Cor (lbs)
6632
Basic dynamic load rating Cr (N)
70000
Basic static load rating C0r (N)
29500
Fatigue limit load Cur (N)
1550
Factor e
0.18
Factor Y0
3.75
Limiting speed nG (rpm)
5,600
Reference speed nB (rpm)
6,200
Weight
Weight (kg)
3.94
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
124
Shaft shoulder db (mm)
106
Housing shoulder Da (mm)
168
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,800 rpm
4
17,500
64
593
6
11,667
216
2,000
8
8,750
512
4,741
10
7,000
1,000
9,259
15
4,667
3,375
31,250
Basic rating life per ISO 281: L10 = (C/P)3 with C = 70,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.352 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
