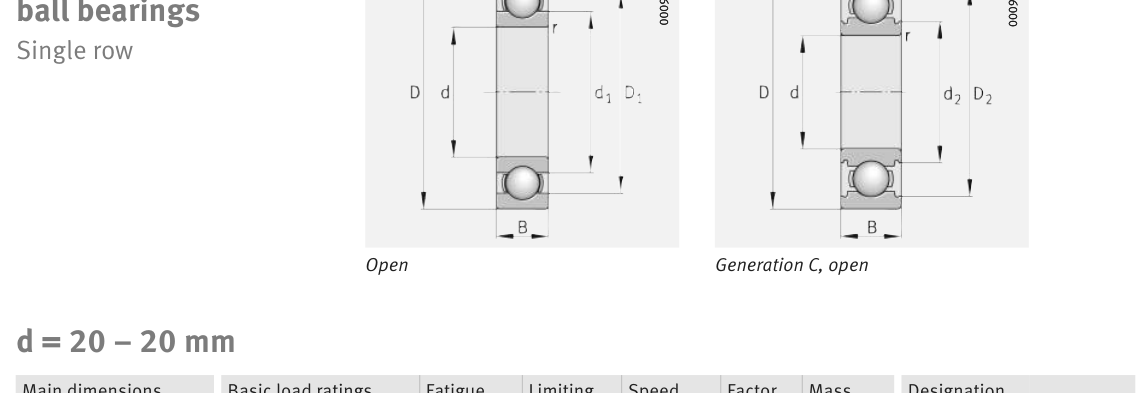

Original catalogue drawing - FAG Schaeffler HR 1, page 242
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
20
0.7874
D
Outside diameter
42
1.6535
B
Inner-ring / bearing width
8
0.315
r
Chamfer (min)
0.3
0.0118
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
20
Outside dia. D (mm)
42
Width B (mm)
8
Inner-ring OD d1 (mm)
28.4
Inner-ring shoulder dia. D1 (mm)
35
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
1664
Basic static load rating Cor (lbs)
922
Basic dynamic load rating Cr (N)
7400
Basic static load rating C0r (N)
4100
Fatigue limit load Cur (N)
207
Factor f0
14.9
Limiting speed nG (rpm)
26,000
Reference speed nB (rpm)
14,300
Weight
Weight (kg)
0.048
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.3
Shaft shoulder da (mm)
22
Housing shoulder Da (mm)
40
Housing fillet ra max (mm)
0.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
1,850
64
356
6
1,233
216
1,200
8
925
512
2,844
10
740
1,000
5,556
15
493
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 7,400 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.242 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
