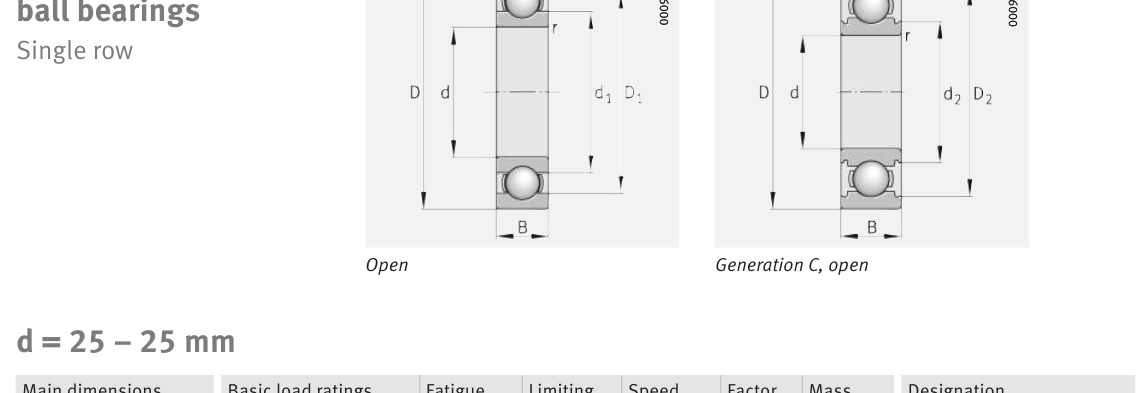

Original catalogue drawing - FAG Schaeffler HR 1, page 244
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
25
0.9843
D
Outside diameter
47
1.8504
B
Inner-ring / bearing width
8
0.315
r
Chamfer (min)
0.3
0.0118
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
25
Outside dia. D (mm)
47
Width B (mm)
8
Inner-ring OD d1 (mm)
32.5
Inner-ring shoulder dia. D1 (mm)
40
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
1731
Basic static load rating Cor (lbs)
1045
Basic dynamic load rating Cr (N)
7700
Basic static load rating C0r (N)
4650
Fatigue limit load Cur (N)
234
Factor f0
15.5
Limiting speed nG (rpm)
22,900
Reference speed nB (rpm)
12,000
Weight
Weight (kg)
0.052
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.3
Shaft shoulder da (mm)
27
Housing shoulder Da (mm)
45
Housing fillet ra max (mm)
0.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
1,925
64
356
6
1,283
216
1,200
8
962
512
2,844
10
770
1,000
5,556
15
513
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 7,700 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.244 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
