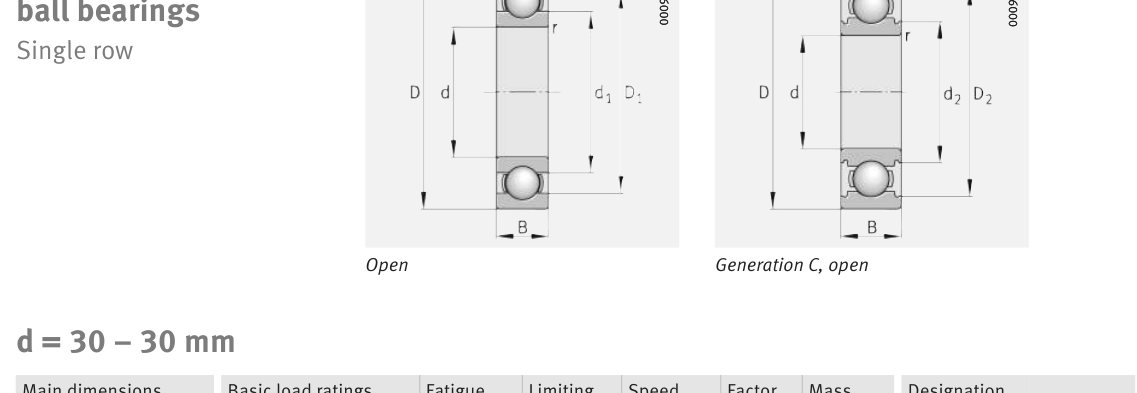

Original catalogue drawing - FAG Schaeffler HR 1, page 246
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
30
1.1811
D
Outside diameter
55
2.1654
B
Inner-ring / bearing width
9
0.3543
r
Chamfer (min)
0.3
0.0118
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
30
Outside dia. D (mm)
55
Width B (mm)
9
Inner-ring OD d1 (mm)
39.2
Inner-ring shoulder dia. D1 (mm)
47.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
2675
Basic static load rating Cor (lbs)
1641
Basic dynamic load rating Cr (N)
11900
Basic static load rating C0r (N)
7300
Fatigue limit load Cur (N)
370
Factor f0
15.1
Limiting speed nG (rpm)
18,900
Reference speed nB (rpm)
10,500
Weight
Weight (kg)
0.082
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.3
Shaft shoulder da (mm)
32
Housing shoulder Da (mm)
53
Housing fillet ra max (mm)
0.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
2,975
64
356
6
1,983
216
1,200
8
1,488
512
2,844
10
1,190
1,000
5,556
15
793
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 11,900 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.246 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
Send us the quantity you need and we will come back with price and
lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
