Name: FAG 2201-2RS-TVH Ball Bearing
Brand: FAG
SKU: 2201-2RS-TVH

2201-2RS-TVH is a FAG ball bearing, bore 12 mm, O.D. 32 mm, width 14 mm, dynamic rating 5.7 kN. Dimensions, drawing, interchanges and price.

Sealed both sidesPolyamide cage

Request a quote WhatsApp Email us Search the catalog

Bore d12mm

Outside dia. D32mm

Width B14mm

Dynamic Cr5.7kN

Static C0r1.25kN

Limiting speed14,700rpm

Weight0.058kg

Cr / C0r4.56

Mean dia. dm22mm

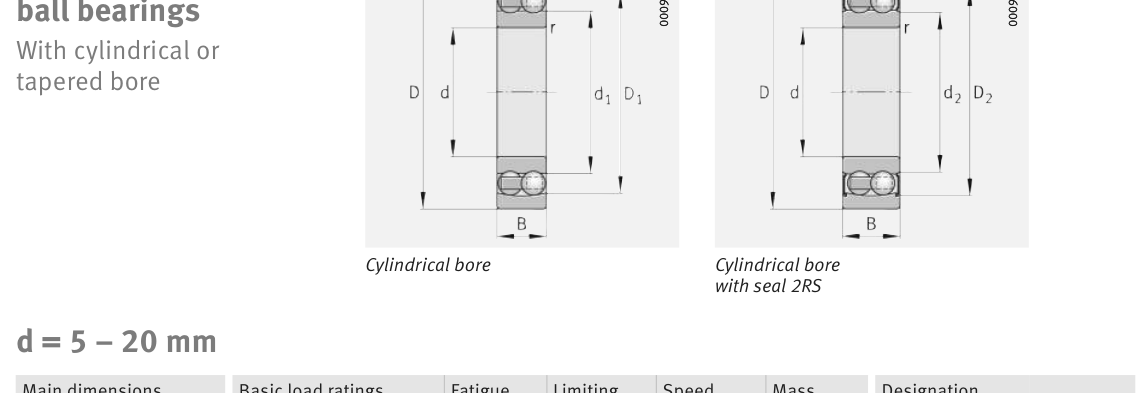

Original catalogue drawing - FAG Schaeffler HR 1, page 386

2201-2RS-TVH FAG Ball bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	12	0.4724
D	Outside diameter	32	1.2598
B	Inner-ring / bearing width	14	0.5512
r	Chamfer (min)	0.6	0.0236

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	12
Outside dia. D (mm)	32
Width B (mm)	14
Seal outside dia. D2 (mm)	27.2

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	1281
Basic static load rating Cor (lbs)	281
Basic dynamic load rating Cr (N)	5700
Basic static load rating C0r (N)	1250
Fatigue limit load Cur (N)	78
Factor e	0.37
Factor Y0	1.77
Limiting speed nG (rpm)	14,700
Reference speed nB (rpm)	27,000

Weight

Weight (kg)	0.058

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	0.6
Shaft shoulder da (mm)	16.2
Housing shoulder Da (mm)	27.8
Housing fillet ra max (mm)	0.6

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 3,000 rpm
4	1,425	64	356
6	950	216	1,200
8	712	512	2,844
10	570	1,000	5,556
15	380	3,375	18,750

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 5,700 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.386 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
2201	NSK	Ball	12	32	14	1,690 lbs	0.054

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
2201-TVH	FAG	Ball	12	32	14	9.4 kN	0.05
4201-B-TVH	FAG	Ball	12	32	14	11.1 kN	0.051
62201-2RSR	FAG	Ball	12	32	14	7.2 kN	0.049

Series variants (different suffix)

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
2201-TVH	FAG	Ball	12	32	14	9.4 kN	0.05

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
1201-TVH	FAG	Ball	12	32	10	5.7 kN	0.041
1301-TVH	FAG	Ball	12	37	12	9.8 kN	0.067
4201-B-TVH	FAG	Ball	12	32	14	11.1 kN	0.051
6001	FAG	Ball	12	28	8	5.1 kN	0.02
6001-2RSR	FAG	Ball	12	28	8	5.1 kN	0.022
6001-2Z	FAG	Ball	12	28	8	5.1 kN	0.02
6001-C	FAG	Ball	12	28	8	5.5 kN	0.02
6001-C-2BRS	FAG	Ball	12	28	8	5.5 kN	0.02

Request a quotation for 2201-2RS-TVH

Send us the quantity you need and we will come back with price and lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
