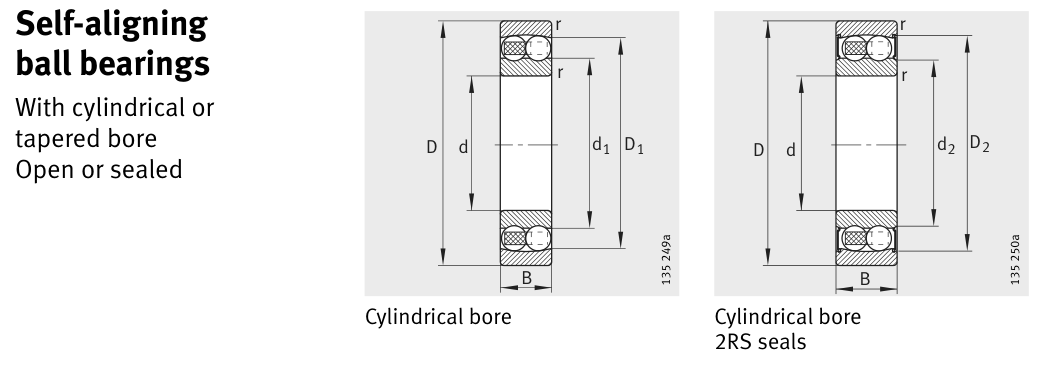

Original catalogue drawing - FAG Schaeffler HR 1, page 340
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
70
2.7559
D
Outside diameter
125
4.9213
B
Inner-ring / bearing width
31
1.2205
r
Chamfer (min)
1.5
0.0591
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
70
Outside dia. D (mm)
125
Width B (mm)
31
Inner-ring OD d1 (mm)
87.6
Inner-ring shoulder dia. D1 (mm)
108.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
9892
Basic static load rating Cor (lbs)
3799
Basic dynamic load rating Cr (N)
44000
Basic static load rating C0r (N)
16900
Fatigue limit load Cur (N)
1050
Factor e
0.27
Factor Y0
2.45
Limiting speed nG (rpm)
8,500
Reference speed nB (rpm)
6,600
Weight
Weight (kg)
1.69
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Shaft shoulder da (mm)
79
Housing shoulder Da (mm)
116
Housing fillet ra max (mm)
1.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,800 rpm
4
11,000
64
381
6
7,333
216
1,286
8
5,500
512
3,048
10
4,400
1,000
5,952
15
2,933
3,375
20,089
Basic rating life per ISO 281: L10 = (C/P)3 with C = 44,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.340 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
