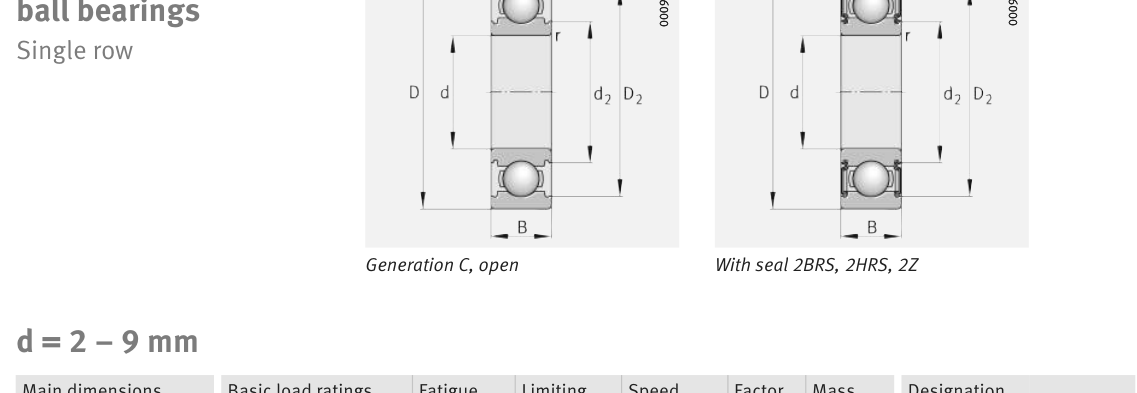

Original catalogue drawing - FAG Schaeffler HR 1, page 232
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
2
0.0787
D
Outside diameter
7
0.2756
B
Inner-ring / bearing width
3.5
0.1378
r
Chamfer (min)
0.15
0.0059
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
2
Outside dia. D (mm)
7
Width B (mm)
3.5
Seal outside dia. D2 (mm)
6.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
92
Basic static load rating Cor (lbs)
29
Basic dynamic load rating Cr (N)
410
Basic static load rating C0r (N)
128
Fatigue limit load Cur (N)
7.3
Factor f0
12.7
Limiting speed nG (rpm)
102,000
Weight
Weight (kg)
0.001
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.15
Shaft shoulder da (mm)
2.8
Housing shoulder Da (mm)
6.2
Housing fillet ra max (mm)
0.15
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
102
64
356
6
68
216
1,200
8
51
512
2,844
10
41
1,000
5,556
15
27
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 410 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.232 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
