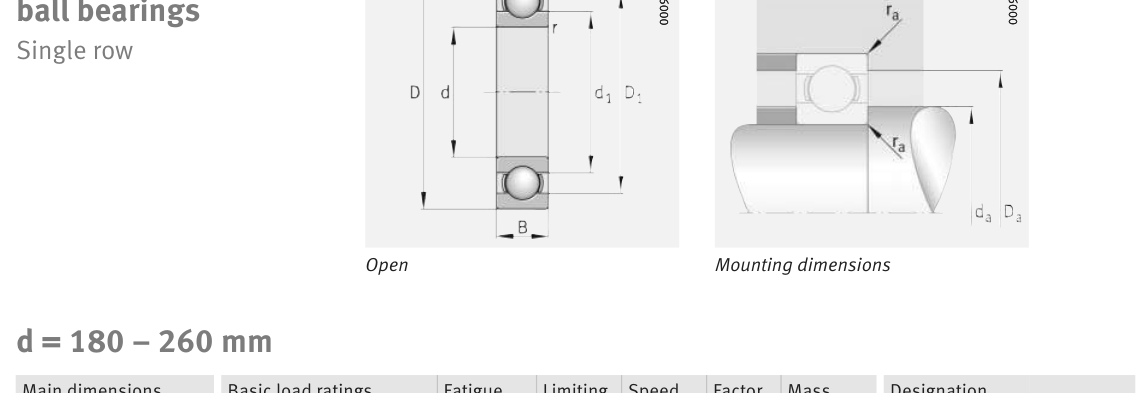

Original catalogue drawing - FAG Schaeffler HR 1, page 274
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
200
7.874
D
Outside diameter
250
9.8425
B
Inner-ring / bearing width
24
0.9449
r
Chamfer (min)
1.5
0.0591
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
200
Outside dia. D (mm)
250
Width B (mm)
24
Inner-ring OD d1 (mm)
216.7
Inner-ring shoulder dia. D1 (mm)
233.8
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
16636
Basic static load rating Cor (lbs)
19783
Basic dynamic load rating Cr (N)
74000
Basic static load rating C0r (N)
88000
Fatigue limit load Cur (N)
3350
Factor f0
15.9
Limiting speed nG (rpm)
3,500
Reference speed nB (rpm)
2,550
Weight
Weight (kg)
2.35
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Shaft shoulder da (mm)
207
Housing shoulder Da (mm)
243
Housing fillet ra max (mm)
1.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,100 rpm
4
18,500
64
970
6
12,333
216
3,273
8
9,250
512
7,758
10
7,400
1,000
15,152
15
4,933
3,375
51,136
Basic rating life per ISO 281: L10 = (C/P)3 with C = 74,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.274 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
