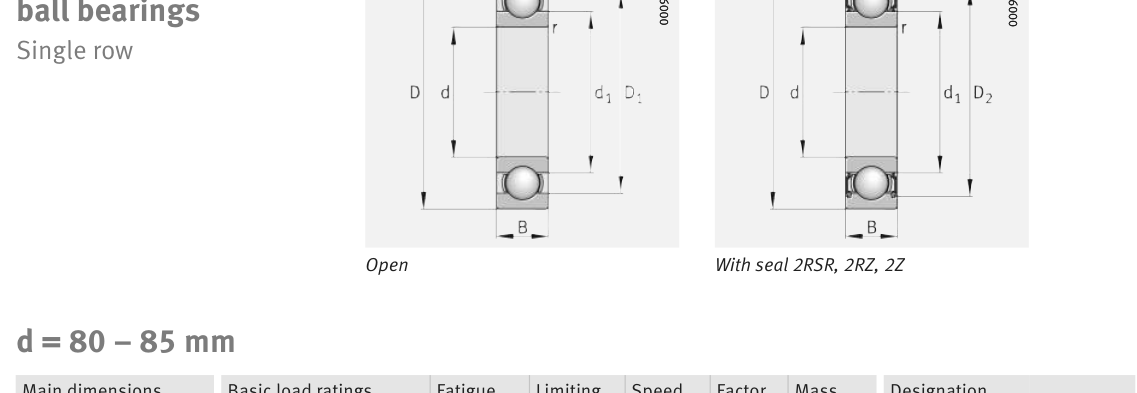

Original catalogue drawing - FAG Schaeffler HR 1, page 264
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
80
3.1496
D
Outside diameter
170
6.6929
B
Inner-ring / bearing width
39
1.5354
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
80
Outside dia. D (mm)
170
Width B (mm)
39
Inner-ring OD d1 (mm)
108.6
Inner-ring shoulder dia. D1 (mm)
141.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
29450
Basic static load rating Cor (lbs)
19558
Basic dynamic load rating Cr (N)
131000
Basic static load rating C0r (N)
87000
Fatigue limit load Cur (N)
5200
Factor f0
13.3
Limiting speed nG (rpm)
5,400
Reference speed nB (rpm)
5,500
Weight
Weight (kg)
3.75
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
92
Housing shoulder Da (mm)
158
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,800 rpm
4
32,750
64
593
6
21,833
216
2,000
8
16,375
512
4,741
10
13,100
1,000
9,259
15
8,733
3,375
31,250
Basic rating life per ISO 281: L10 = (C/P)3 with C = 131,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.264 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
