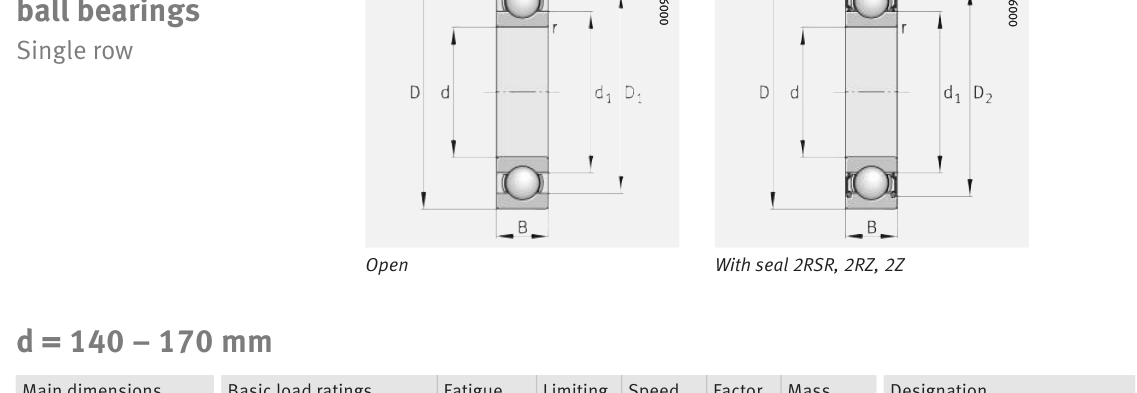

Original catalogue drawing - FAG Schaeffler HR 1, page 272
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
150
5.9055
D
Outside diameter
320
12.5984
B
Inner-ring / bearing width
65
2.5591
r
Chamfer (min)
4
0.1575
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
150
Outside dia. D (mm)
320
Width B (mm)
65
Inner-ring OD d1 (mm)
205.5
Inner-ring shoulder dia. D1 (mm)
266.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
67443
Basic static load rating Cor (lbs)
65195
Basic dynamic load rating Cr (N)
300000
Basic static load rating C0r (N)
290000
Fatigue limit load Cur (N)
13100
Factor f0
13.7
Limiting speed nG (rpm)
2,800
Reference speed nB (rpm)
3,000
Weight
Weight (kg)
22.4
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
4
Shaft shoulder da (mm)
167
Housing shoulder Da (mm)
303
Housing fillet ra max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 900 rpm
4
75,000
64
1,185
6
50,000
216
4,000
8
37,500
512
9,481
10
30,000
1,000
18,519
15
20,000
3,375
62,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 300,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.272 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
