6410FAGBall

Name: FAG 6410 Ball Bearing
Brand: FAG
SKU: 6410

6410 is a FAG ball bearing, bore 50 mm, O.D. 130 mm, width 31 mm, dynamic rating 89 kN. Dimensions, drawing, interchanges and price.

Request a quote WhatsApp Email us Search the catalog

Bore d50mm

Outside dia. D130mm

Width B31mm

Dynamic Cr89kN

Static C0r52kN

Limiting speed7,900rpm

Weight1.96kg

Cr / C0r1.71

Mean dia. dm90mm

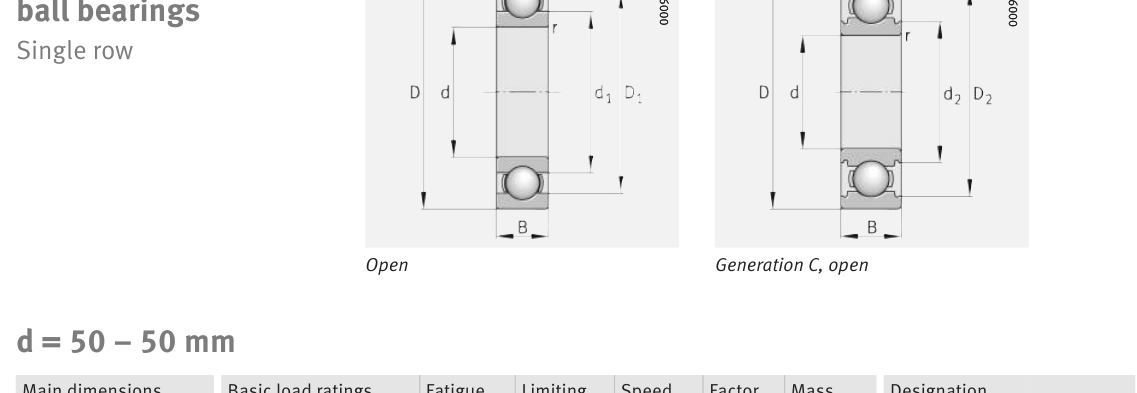

Original catalogue drawing - FAG Schaeffler HR 1, page 254

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	50	1.9685
D	Outside diameter	130	5.1181
B	Inner-ring / bearing width	31	1.2205
r	Chamfer (min)	2.1	0.0827

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	50
Outside dia. D (mm)	130
Width B (mm)	31
Inner-ring OD d1 (mm)	81.3
Inner-ring shoulder dia. D1 (mm)	108.6

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	20008
Basic static load rating Cor (lbs)	11690
Basic dynamic load rating Cr (N)	89000
Basic static load rating C0r (N)	52000
Fatigue limit load Cur (N)	3500
Factor f0	13.2
Limiting speed nG (rpm)	7,900
Reference speed nB (rpm)	6,500

Weight

Weight (kg)	1.96

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	2.1
Shaft shoulder da (mm)	64
Housing shoulder Da (mm)	116
Housing fillet ra max (mm)	2.1

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 2,600 rpm
4	22,250	64	410
6	14,833	216	1,385
8	11,125	512	3,282
10	8,900	1,000	6,410
15	5,933	3,375	21,635

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 89,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.254 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
7410B	NSK	Ball	50	130	31	18,900 lbs	2.177
410	NSK	Cylindrical Roller	50	130	31	29,000 lbs	1.956

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
NJ410-XL-M1	FAG	Cylindrical Roller	50	130	31	175 kN	2.36
NU410-XL-M1	FAG	Cylindrical Roller	50	130	31	175 kN	2.33
7410-B-XL-MP	FAG	Precision / Angular Contact	50	130	31	96 kN	2.054

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
11210-TVH	FAG	Ball	50	90	20	22.9 kN	0.866
1210-K-TVH-C3	FAG	Ball	50	90	20	22.9 kN	0.516
1210-TVH	FAG	Ball	50	90	20	22.9 kN	0.526
1310-K-TVH-C3	FAG	Ball	50	110	27	42 kN	1.52
1310-TVH	FAG	Ball	50	110	27	42 kN	1.54
16010	FAG	Ball	50	80	10	17.1 kN	0.175
2210-2RS-TVH	FAG	Ball	50	90	23	22.9 kN	0.606
2210-K-2RS-TVH-C3	FAG	Ball	50	90	23	22.9 kN	0.593
