Name: FAG 6412 Ball Bearing
Brand: FAG
SKU: 6412

6412 is a FAG ball bearing, bore 60 mm, O.D. 150 mm, width 35 mm, dynamic rating 115 kN. Dimensions, drawing, interchanges and price.

Request a quote WhatsApp Email us Search the catalog

Bore d60mm

Outside dia. D150mm

Width B35mm

Dynamic Cr115kN

Static C0r69kN

Limiting speed6,800rpm

Weight2.83kg

Cr / C0r1.67

Mean dia. dm105mm

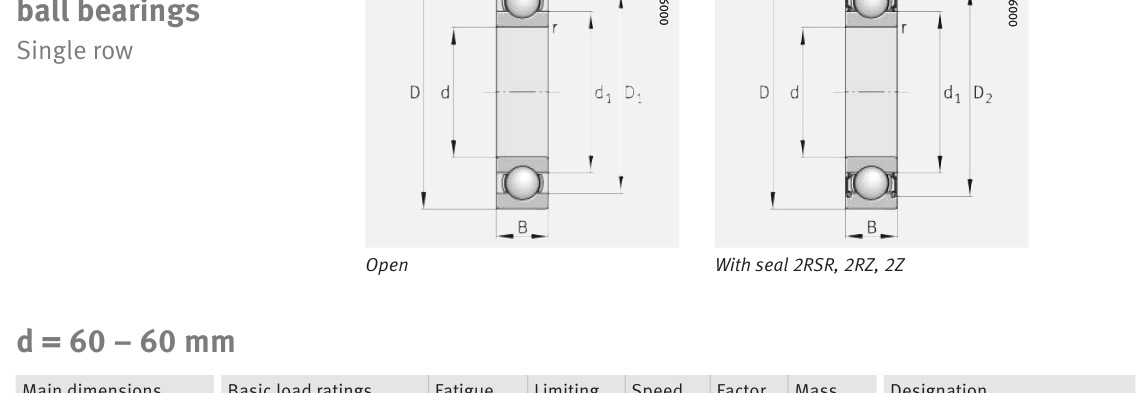

Original catalogue drawing - FAG Schaeffler HR 1, page 258

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	60	2.3622
D	Outside diameter	150	5.9055
B	Inner-ring / bearing width	35	1.378
r	Chamfer (min)	2.1	0.0827

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	60
Outside dia. D (mm)	150
Width B (mm)	35
Inner-ring OD d1 (mm)	95.1
Inner-ring shoulder dia. D1 (mm)	126.3

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	25853
Basic static load rating Cor (lbs)	15512
Basic dynamic load rating Cr (N)	115000
Basic static load rating C0r (N)	69000
Fatigue limit load Cur (N)	4450
Factor f0	13.4
Limiting speed nG (rpm)	6,800
Reference speed nB (rpm)	5,900

Weight

Weight (kg)	2.83

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	2.1
Shaft shoulder da (mm)	74
Housing shoulder Da (mm)	136
Housing fillet ra max (mm)	2.1

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 2,200 rpm
4	28,750	64	485
6	19,167	216	1,636
8	14,375	512	3,879
10	11,500	1,000	7,576
15	7,667	3,375	25,568

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 115,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.258 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
7412B	NSK	Ball	60	150	35	24,900 lbs	3.175
412	NSK	Cylindrical Roller	60	150	35	37,600 lbs	2.994

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
NJ412-XL-M1	FAG	Cylindrical Roller	60	150	35	211 kN	3.47
NU412-XL-M1	FAG	Cylindrical Roller	60	150	35	211 kN	3.41
7412-B-XL-MP	FAG	Precision / Angular Contact	60	150	35	126 kN	3.106

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
11212-TVH	FAG	Ball	60	110	22	30.5 kN	1.51
1212-K-TVH-C3	FAG	Ball	60	110	22	30.5 kN	0.88
1212-TVH	FAG	Ball	60	110	22	30.5 kN	0.894
1312-K-TVH-C3	FAG	Ball	60	130	31	58 kN	1.94
1312-TVH	FAG	Ball	60	130	31	58 kN	1.97
16012	FAG	Ball	60	95	11	21.2 kN	0.283
2212-2RS-TVH	FAG	Ball	60	110	28	30.5 kN	1.13
2212-K-2RS-TVH-C3	FAG	Ball	60	110	28	30.5 kN	1.13
