Name: FAG 6413 Ball Bearing
Brand: FAG
SKU: 6413

6413 is a FAG ball bearing, bore 65 mm, O.D. 160 mm, width 37 mm, dynamic rating 123 kN. Dimensions, drawing, interchanges and price.

Request a quote WhatsApp Email us Search the catalog

Bore d65mm

Outside dia. D160mm

Width B37mm

Dynamic Cr123kN

Static C0r77kN

Limiting speed6,300rpm

Weight3.49kg

Cr / C0r1.6

Mean dia. dm112.5mm

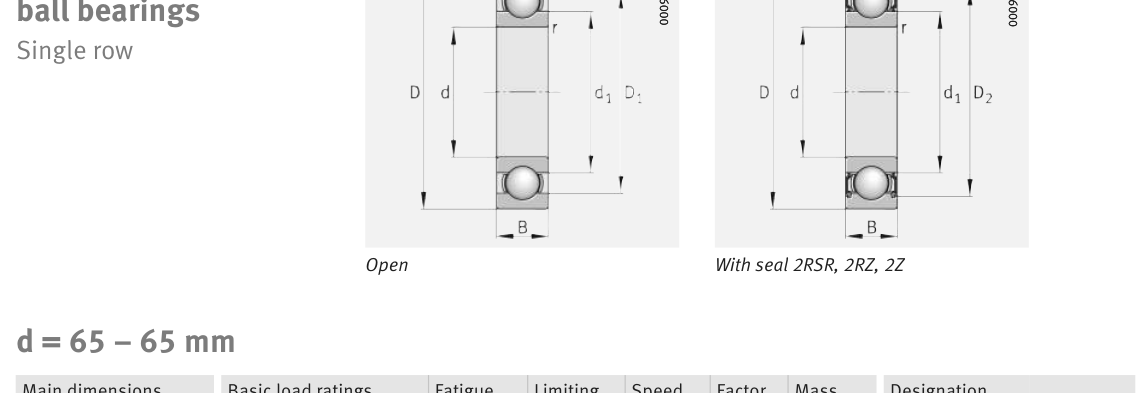

Original catalogue drawing - FAG Schaeffler HR 1, page 260

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	65	2.5591
D	Outside diameter	160	6.2992
B	Inner-ring / bearing width	37	1.4567
r	Chamfer (min)	2.1	0.0827

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	65
Outside dia. D (mm)	160
Width B (mm)	37
Inner-ring OD d1 (mm)	101.7
Inner-ring shoulder dia. D1 (mm)	133.3

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	27652
Basic static load rating Cor (lbs)	17310
Basic dynamic load rating Cr (N)	123000
Basic static load rating C0r (N)	77000
Fatigue limit load Cur (N)	4750
Factor f0	13.2
Limiting speed nG (rpm)	6,300
Reference speed nB (rpm)	5,600

Weight

Weight (kg)	3.49

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	2.1
Shaft shoulder da (mm)	79
Housing shoulder Da (mm)	146
Housing fillet ra max (mm)	2.1

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 2,100 rpm
4	30,750	64	508
6	20,500	216	1,714
8	15,375	512	4,063
10	12,300	1,000	7,937
15	8,200	3,375	26,786

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 123,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.260 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
7413B	NSK	Ball	65	160	37	26,900 lbs	3.81
413	NSK	Cylindrical Roller	65	160	37	40,900 lbs	3.572

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
NJ413-XL-M1	FAG	Cylindrical Roller	65	160	37	230 kN	4.15
NU413-XL-M1	FAG	Cylindrical Roller	65	160	37	230 kN	4.08
7413-B-XL-MP	FAG	Precision / Angular Contact	65	160	37	140 kN	3.709

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
1213-K-TVH-C3	FAG	Ball	65	120	23	31 kN	1.13
1213-TVH	FAG	Ball	65	120	23	31 kN	1.14
1313-K-TVH-C3	FAG	Ball	65	140	33	63 kN	2.41
1313-TVH	FAG	Ball	65	140	33	63 kN	2.44
16013	FAG	Ball	65	100	11	22.5 kN	0.302
2213-2RS-TVH	FAG	Ball	65	120	31	31 kN	1.53
2213-K-2RS-TVH-C3	FAG	Ball	65	120	31	31 kN	1.5
2213-K-TVH-C3	FAG	Ball	65	120	31	58 kN	1.33

Request a quotation for 6413

Send us the quantity you need and we will come back with price and lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
