QJ238-N2-MPAFAGBall

Name: FAG QJ238-N2-MPA Ball Bearing
Brand: FAG
SKU: QJ238-N2-MPA

QJ238-N2-MPA is a FAG ball bearing, bore 190 mm, O.D. 340 mm, width 55 mm, dynamic rating 455 kN. Dimensions, drawing, interchanges and price.

Brass cage

Request a quote WhatsApp Email us Search the catalog

Bore d190mm

Outside dia. D340mm

Width B55mm

Dynamic Cr455kN

Static C0r735kN

Limiting speed3,200rpm

Weight23.8kg

Cr / C0r0.62

Mean dia. dm265mm

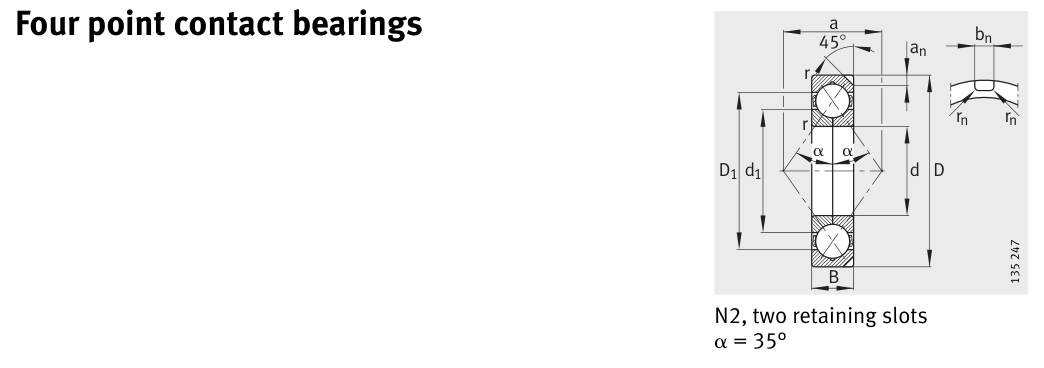

Original catalogue drawing - FAG Schaeffler HR 1, page 322

QJ238-N2-MPA FAG Ball bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	190	7.4803
D	Outside diameter	340	13.3858
B	Inner-ring / bearing width	55	2.1654
r	Chamfer (min)	4	0.1575

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	190
Outside dia. D (mm)	340
Width B (mm)	55
Inner-ring OD d1 (mm)	245.8
Inner-ring shoulder dia. D1 (mm)	286.3

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	102288
Basic static load rating Cor (lbs)	165235
Basic dynamic load rating Cr (N)	455000
Basic static load rating C0r (N)	735000
Fatigue limit load Cur (N)	24400
Limiting speed nG (rpm)	3,200
Effective load centre a (mm)	186

Weight

Weight (kg)	23.8

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	4
Shaft shoulder da (mm)	207
Housing shoulder Da (mm)	323
Housing fillet ra max (mm)	3

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 1,000 rpm
4	113,750	64	1,067
6	75,833	216	3,600
8	56,875	512	8,533
10	45,500	1,000	16,667
15	30,333	3,375	56,250

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 455,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.322 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
