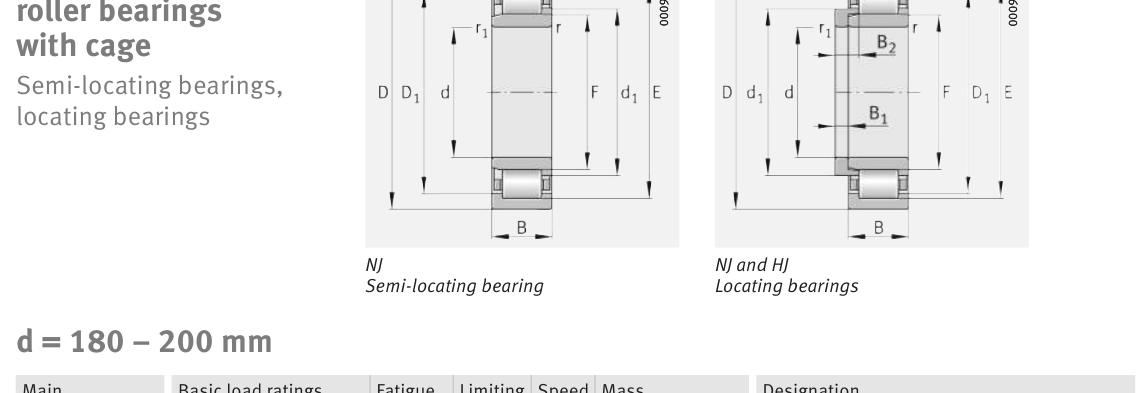

Original catalogue drawing - FAG Schaeffler HR 1, page 474
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
180
7.0866
D
Outside diameter
320
12.5984
B
Inner-ring / bearing width
86
3.3858
r
Chamfer (min)
4
0.1575
E
Roller-set outside dia.
291
11.4567
F
Roller-set bore dia.
215
8.4646
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
180
Outside dia. D (mm)
320
Width B (mm)
86
Inner-ring OD d1 (mm)
229
Inner-ring shoulder dia. D1 (mm)
280
Dimension E (mm)
291
Dimension F (mm)
215
Dimension s (mm)
7.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
265275
Basic static load rating Cor (lbs)
334965
Basic dynamic load rating Cr (N)
1.18e+06
Basic static load rating C0r (N)
1.49e+06
Fatigue limit load Cur (N)
225000
Limiting speed nG (rpm)
3,200
Reference speed nB (rpm)
1,380
Weight
Weight (kg)
31.1
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
4
Chamfer r1 min (mm)
4
Shaft shoulder da (mm)
197
Shaft shoulder dc (mm)
233
Housing shoulder Da (mm)
303
Housing fillet ra max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,000 rpm
4
295,000
102
1,693
6
196,667
392
6,542
8
147,500
1,024
17,067
10
118,000
2,154
35,907
15
78,667
8,323
138,724
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,180,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.474 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
