NN30/500-AS-K-M-SPFAGCylindrical Roller

Name: FAG NN30/500-AS-K-M-SP Cylindrical Roller Bearing
Brand: FAG
SKU: NN30/500-AS-K-M-SP

NN30/500-AS-K-M-SP is a FAG cylindrical roller bearing, bore 500 mm, O.D. 720 mm, width 167 mm. Dimensions, drawing, interchanges and price.

Tapered bore

Request a quote WhatsApp Email us Search the catalog

Bore d500mm

Outside dia. D720mm

Width B167mm

Dynamic Cr2650kN

Static C0r5850kN

Limiting speed1,000rpm

Weight214kg

Cr / C0r0.45

Mean dia. dm610mm

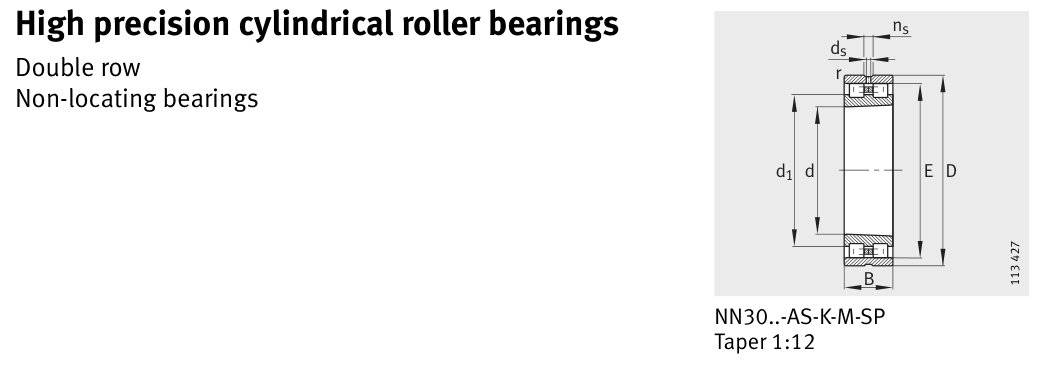

Original catalogue drawing - FAG Schaeffler HR 1, page 426

NN30/500-AS-K-M-SP FAG Cylindrical Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	500	19.685
D	Outside diameter	720	28.3465
B	Inner-ring / bearing width	167	6.5748
r	Chamfer (min)	6	0.2362
E	Roller-set outside dia.	664	26.1417

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	500
Outside dia. D (mm)	720
Width B (mm)	167
Inner-ring OD d1 (mm)	584
Dimension E (mm)	664

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	595744
Basic static load rating Cor (lbs)	1315132
Basic dynamic load rating Cr (N)	2.65e+06
Basic static load rating C0r (N)	5.85e+06
Fatigue limit load Cur (N)	620000
Limiting speed nG (rpm)	1,000

Weight

Weight (kg)	214.0

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	6
Shaft shoulder da (mm)	523
Housing shoulder Da (mm)	697
Housing shoulder Db (mm)	668
Housing fillet ra max (mm)	5

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 300 rpm
4	662,500	102	5,644
6	441,667	392	21,805
8	331,250	1,024	56,889
10	265,000	2,154	119,691
15	176,667	8,323	462,415

Basic rating life per ISO 281: L₁₀ = (C/P)^10/3 with C = 2,650,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.426 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
230/500CAME4	NSK	Spherical Roller	500	720	167	850,000 lbs	218.178

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
230/500-BEA-XL-K-MB1	FAG	Spherical Roller	500	720	167	4700 kN	223
230/500-BEA-XL-MB1	FAG	Spherical Roller	500	720	167	4700 kN	230

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
NU10/500-M1	FAG	Cylindrical Roller	500	720	100	1760 kN	133
NU10/500-TB-M1	FAG	Cylindrical Roller	500	720	100	1750 kN	133
SL1818/500-E	FAG	Cylindrical Roller	500	620	56	980 kN	35.73
SL1818/500-E-TB	FAG	Cylindrical Roller	500	620	56	980 kN	35.73
SL1829/500	FAG	Cylindrical Roller	500	670	100	2450 kN	98.3
SL1829/500-TB	FAG	Cylindrical Roller	500	670	100	2430 kN	98.3

Request a quotation for NN30/500-AS-K-M-SP

Send us the quantity you need and we will come back with price and lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.

Online enquiry form richard@bearingsfit.com WhatsApp +86 156 2149 6516
