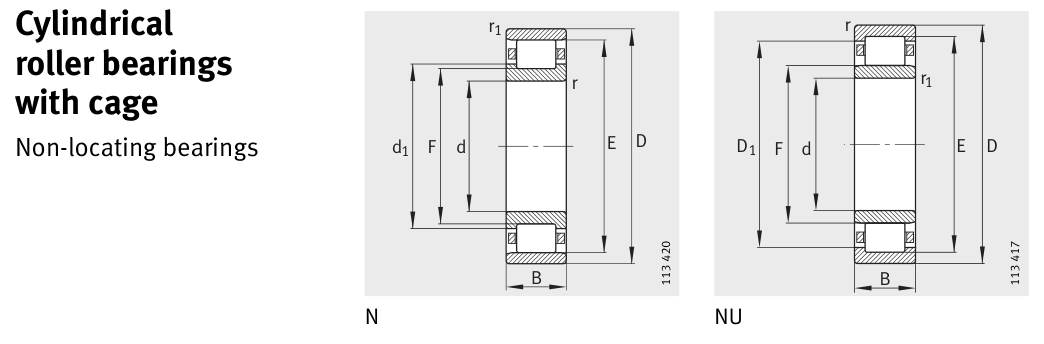

Original catalogue drawing - FAG Schaeffler HR 1, page 378
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
420
16.5354
D
Outside diameter
620
24.4094
B
Inner-ring / bearing width
90
3.5433
r
Chamfer (min)
5
0.1969
E
Roller-set outside dia.
570
22.4409
F
Roller-set bore dia.
470
18.5039
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
420
Outside dia. D (mm)
620
Width B (mm)
90
Inner-ring shoulder dia. D1 (mm)
551.5
Dimension E (mm)
570
Dimension F (mm)
470
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
314733
Basic static load rating Cor (lbs)
550782
Basic dynamic load rating Cr (N)
1.4e+06
Basic static load rating C0r (N)
2.45e+06
Fatigue limit load Cur (N)
183000
Limiting speed nG (rpm)
1,800
Reference speed nB (rpm)
920
Weight
Weight (kg)
92.9
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
5
Chamfer r1 min (mm)
5
Shaft shoulder da (mm)
437
Shaft shoulder db (mm)
475
Housing shoulder Da (mm)
603
Housing fillet ra max (mm)
4
Housing fillet ra1 max (mm)
4
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 600 rpm
4
350,000
102
2,822
6
233,333
392
10,903
8
175,000
1,024
28,444
10
140,000
2,154
59,845
15
93,333
8,323
231,207
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,400,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.378 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
