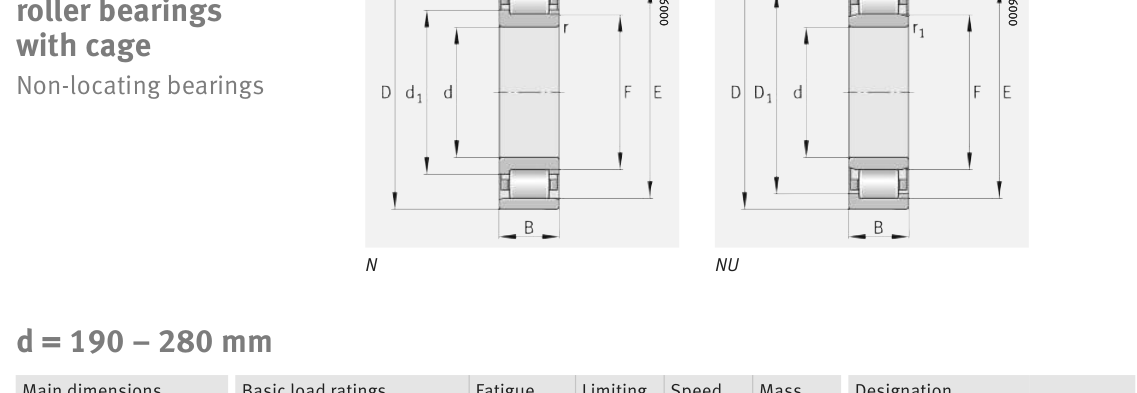

Original catalogue drawing - FAG Schaeffler HR 1, page 446
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
280
11.0236
D
Outside diameter
580
22.8346
B
Inner-ring / bearing width
108
4.252
r
Chamfer (min)
6
0.2362
E
Roller-set outside dia.
512
20.1575
F
Roller-set bore dia.
362
14.252
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
280
Outside dia. D (mm)
580
Width B (mm)
108
Inner-ring shoulder dia. D1 (mm)
482
Dimension E (mm)
512
Dimension F (mm)
362
Dimension s (mm)
8.7
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
490083
Basic static load rating Cor (lbs)
685667
Basic dynamic load rating Cr (N)
2.18e+06
Basic static load rating C0r (N)
3.05e+06
Fatigue limit load Cur (N)
200000
Limiting speed nG (rpm)
1,700
Weight
Weight (kg)
147.0
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
6
Chamfer r1 min (mm)
6
Shaft shoulder da (mm)
306
Shaft shoulder db (mm)
366
Housing shoulder Da (mm)
554
Housing fillet ra max (mm)
5
Housing fillet ra1 max (mm)
5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
545,000
102
3,386
6
363,333
392
13,083
8
272,500
1,024
34,133
10
218,000
2,154
71,814
15
145,333
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 2,180,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.446 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
