SL014830 is a FAG cylindrical roller bearing, bore 150 mm, O.D. 190 mm, width 40 mm, dynamic rating 231 kN. Dimensions, drawing, interchanges and price.

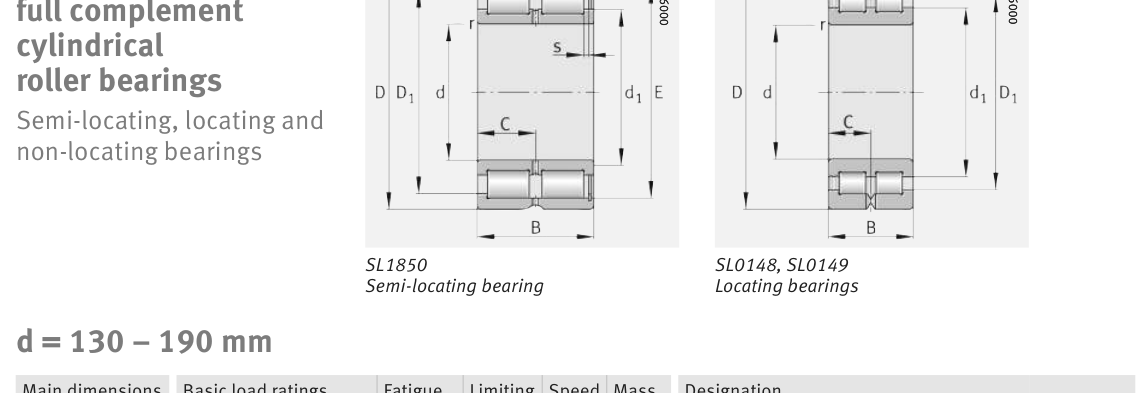

Original catalogue drawing - FAG Schaeffler HR 1, page 544
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
150
5.9055
D
Outside diameter
190
7.4803
B
Inner-ring / bearing width
40
1.5748
C
Cup / outer-ring width
20
0.7874
r
Chamfer (min)
1.1
0.0433
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
150
Outside dia. D (mm)
190
Width B (mm)
40
Cup width C (mm)
20
Inner-ring OD d1 (mm)
165.1
Inner-ring shoulder dia. D1 (mm)
174.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
51931
Basic static load rating Cor (lbs)
119149
Basic dynamic load rating Cr (N)
231000
Basic static load rating C0r (N)
530000
Fatigue limit load Cur (N)
62000
Limiting speed nG (rpm)
1,900
Reference speed nB (rpm)
1,270
Weight
Weight (kg)
2.9
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.1
Shaft shoulder dc (mm)
165
Housing shoulder Da (mm)
174.5
Housing fillet ra max (mm)
1.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 600 rpm
4
57,750
102
2,822
6
38,500
392
10,903
8
28,875
1,024
28,444
10
23,100
2,154
59,845
15
15,400
8,323
231,207
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 231,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.544 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
