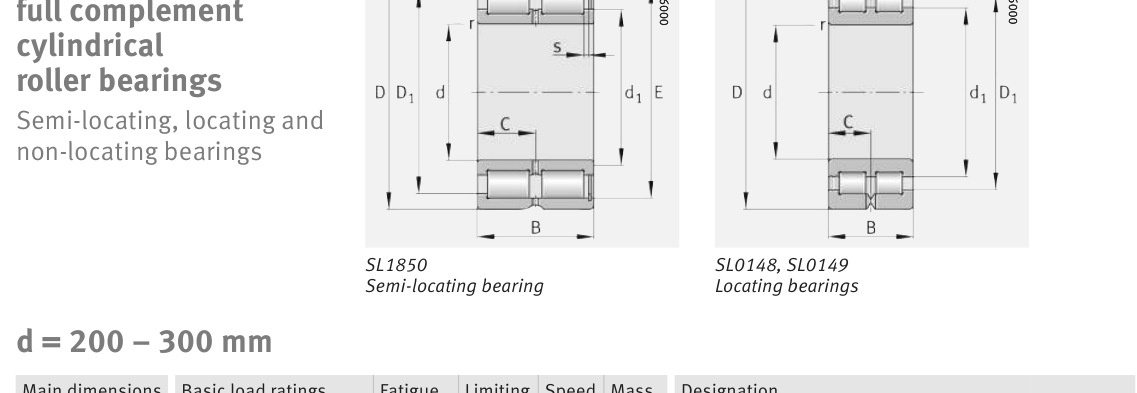

Original catalogue drawing - FAG Schaeffler HR 1, page 546
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
260
10.2362
D
Outside diameter
360
14.1732
B
Inner-ring / bearing width
100
3.937
C
Cup / outer-ring width
50
1.9685
r
Chamfer (min)
2.1
0.0827
E
Roller-set outside dia.
331.33
13.0445
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
260
Outside dia. D (mm)
360
Width B (mm)
100
Cup width C (mm)
50
Inner-ring OD d1 (mm)
294.5
Dimension E (mm)
331.33
Dimension s (mm)
6
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
247290
Basic static load rating Cor (lbs)
555278
Basic dynamic load rating Cr (N)
1.1e+06
Basic static load rating C0r (N)
2.47e+06
Fatigue limit load Cur (N)
280000
Limiting speed nG (rpm)
1,010
Reference speed nB (rpm)
570
Weight
Weight (kg)
31.2
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder dc (mm)
294.5
Housing shoulder Db (mm)
331
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 300 rpm
4
275,000
102
5,644
6
183,333
392
21,805
8
137,500
1,024
56,889
10
110,000
2,154
119,691
15
73,333
8,323
462,415
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,100,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.546 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
