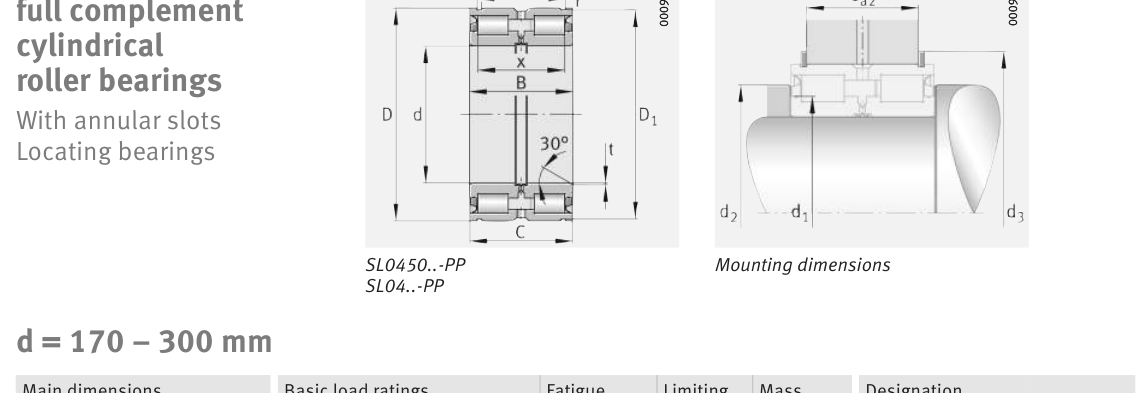

Original catalogue drawing - FAG Schaeffler HR 1, page 552
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
170
6.6929
D
Outside diameter
230
9.0551
B
Inner-ring / bearing width
80
3.1496
C
Cup / outer-ring width
79
3.1102
r
Chamfer (min)
0.6
0.0236
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
170
Outside dia. D (mm)
230
Width B (mm)
80
Cup width C (mm)
79
Inner-ring OD d1 (mm)
194
Inner-ring shoulder dia. D1 (mm)
226
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
110156
Basic static load rating Cor (lbs)
231553
Basic dynamic load rating Cr (N)
490000
Basic static load rating C0r (N)
1.03e+06
Fatigue limit load Cur (N)
127000
Limiting speed nG (rpm)
790
Weight
Weight (kg)
5.2
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 200 rpm
4
122,500
102
8,466
6
81,667
392
32,708
8
61,250
1,024
85,333
10
49,000
2,154
179,536
15
32,667
8,323
693,622
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 490,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.552 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
