SL182224 is a FAG cylindrical roller bearing, bore 120 mm, O.D. 215 mm, width 58 mm, dynamic rating 530 kN. Dimensions, drawing, interchanges and price.

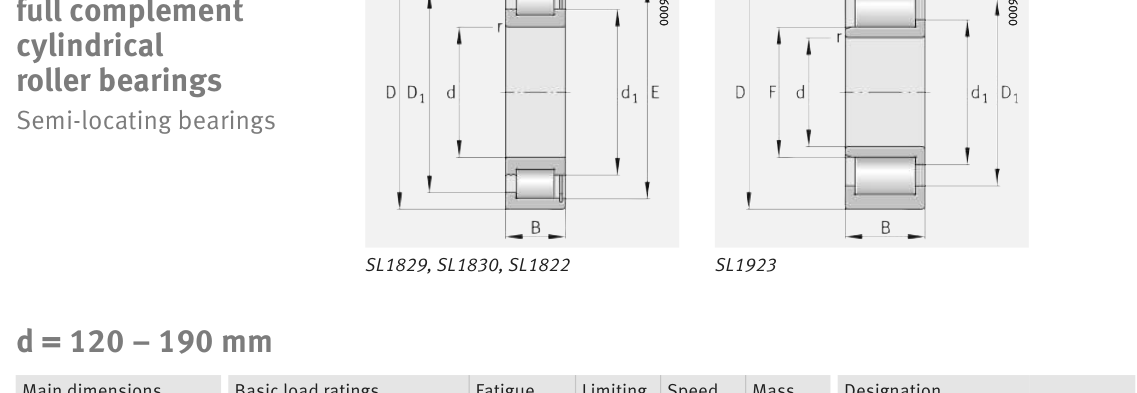

Original catalogue drawing - FAG Schaeffler HR 1, page 518
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
120
4.7244
D
Outside diameter
215
8.4646
B
Inner-ring / bearing width
58
2.2835
r
Chamfer (min)
2.1
0.0827
E
Roller-set outside dia.
192.9
7.5945
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
120
Outside dia. D (mm)
215
Width B (mm)
58
Inner-ring OD d1 (mm)
150.7
Inner-ring shoulder dia. D1 (mm)
183
Dimension E (mm)
192.9
Dimension s (mm)
4
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
119149
Basic static load rating Cor (lbs)
161862
Basic dynamic load rating Cr (N)
530000
Basic static load rating C0r (N)
720000
Fatigue limit load Cur (N)
99000
Limiting speed nG (rpm)
1,930
Reference speed nB (rpm)
1,500
Weight
Weight (kg)
9.08
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder dc (mm)
150.5
Housing shoulder Da (mm)
183
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 600 rpm
4
132,500
102
2,822
6
88,333
392
10,903
8
66,250
1,024
28,444
10
53,000
2,154
59,845
15
35,333
8,323
231,207
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 530,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.518 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
Send us the quantity you need and we will come back with price and
lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
