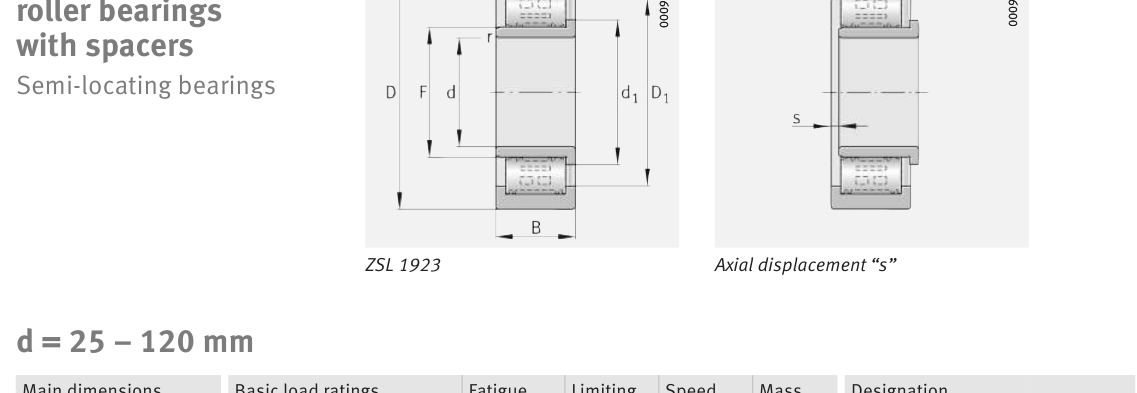

Original catalogue drawing - FAG Schaeffler HR 1, page 496
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
110
4.3307
D
Outside diameter
240
9.4488
B
Inner-ring / bearing width
80
3.1496
r
Chamfer (min)
3
0.1181
F
Roller-set bore dia.
134.3
5.2874
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
110
Outside dia. D (mm)
240
Width B (mm)
80
Inner-ring OD d1 (mm)
151.1
Inner-ring shoulder dia. D1 (mm)
199.9
Dimension F (mm)
134.3
Dimension s (mm)
5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
200080
Basic static load rating Cor (lbs)
202328
Basic dynamic load rating Cr (N)
890000
Basic static load rating C0r (N)
900000
Fatigue limit load Cur (N)
148000
Limiting speed nG (rpm)
3,850
Reference speed nB (rpm)
2,700
Weight
Weight (kg)
16.5
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
3
Shaft shoulder da (mm)
134
Shaft shoulder dc (mm)
151.5
Housing shoulder Da (mm)
199.5
Housing fillet ra max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,200 rpm
4
222,500
102
1,411
6
148,333
392
5,451
8
111,250
1,024
14,222
10
89,000
2,154
29,923
15
59,333
8,323
115,604
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 890,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
