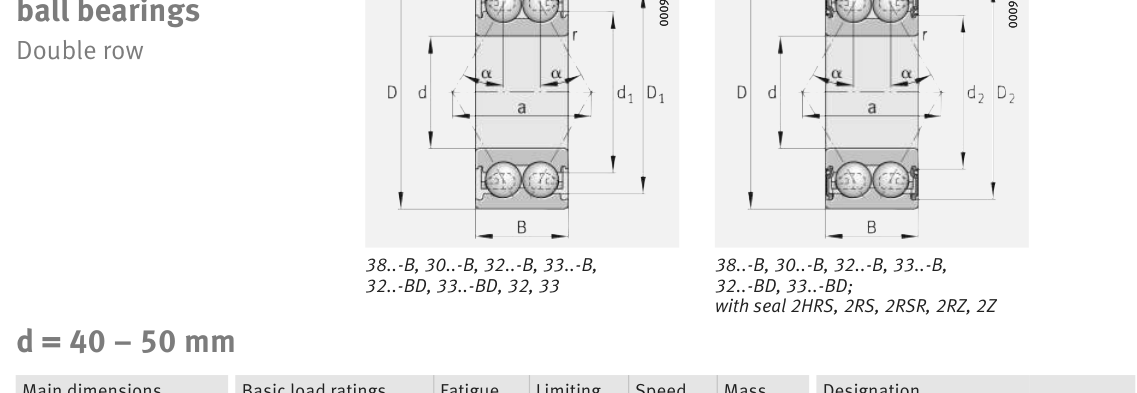

Original catalogue drawing - FAG Schaeffler HR 1, page 338
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
50
1.9685
D
Outside diameter
110
4.3307
B
Inner-ring / bearing width
44.4
1.748
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
50
Outside dia. D (mm)
110
Width B (mm)
44.4
Seal outside dia. D2 (mm)
96.8
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
20907
Basic static load rating Cor (lbs)
15737
Basic dynamic load rating Cr (N)
93000
Basic static load rating C0r (N)
70000
Fatigue limit load Cur (N)
4700
Limiting speed nG (rpm)
4,900
Reference speed nB (rpm)
6,300
Effective load centre a (mm)
64.2
Weight
Weight (kg)
1.75
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Shaft shoulder da (mm)
61
Housing shoulder Da (mm)
99
Housing fillet ra max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
23,250
64
667
6
15,500
216
2,250
8
11,625
512
5,333
10
9,300
1,000
10,417
15
6,200
3,375
35,156
Basic rating life per ISO 281: L10 = (C/P)3 with C = 93,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.338 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
