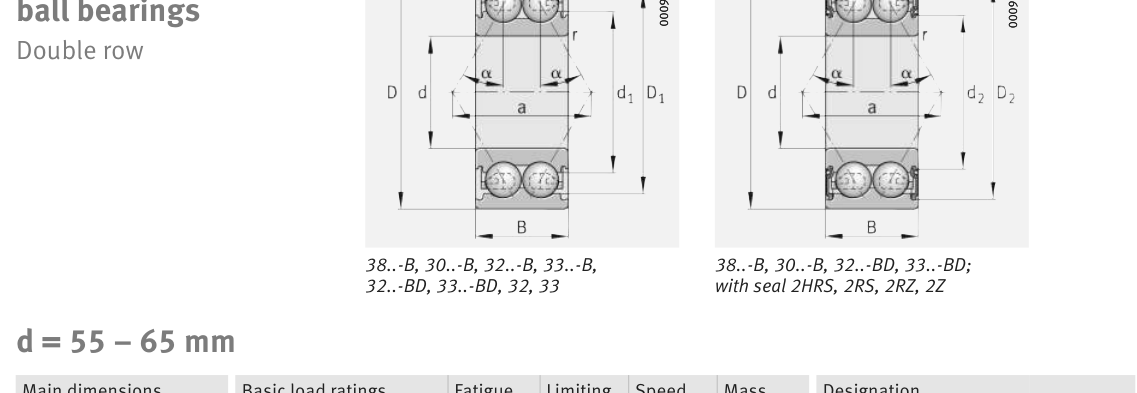

Original catalogue drawing - FAG Schaeffler HR 1, page 340
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
65
2.5591
D
Outside diameter
140
5.5118
B
Inner-ring / bearing width
58.7
2.311
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
65
Outside dia. D (mm)
140
Width B (mm)
58.7
Seal outside dia. D2 (mm)
125
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
33721
Basic static load rating Cor (lbs)
26752
Basic dynamic load rating Cr (N)
150000
Basic static load rating C0r (N)
119000
Fatigue limit load Cur (N)
7900
Limiting speed nG (rpm)
3,650
Reference speed nB (rpm)
5,300
Effective load centre a (mm)
83.49
Weight
Weight (kg)
4.1
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
77
Housing shoulder Da (mm)
128
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,200 rpm
4
37,500
64
889
6
25,000
216
3,000
8
18,750
512
7,111
10
15,000
1,000
13,889
15
10,000
3,375
46,875
Basic rating life per ISO 281: L10 = (C/P)3 with C = 150,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
