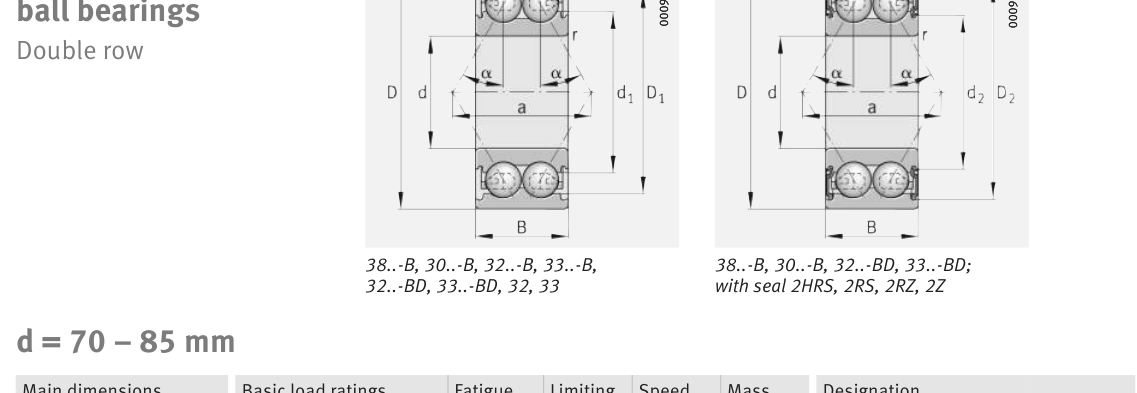

Original catalogue drawing - FAG Schaeffler HR 1, page 342
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
80
3.1496
D
Outside diameter
170
6.6929
B
Inner-ring / bearing width
68.3
2.689
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
80
Outside dia. D (mm)
170
Width B (mm)
68.3
Seal outside dia. D2 (mm)
151.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
44737
Basic static load rating Cor (lbs)
40466
Basic dynamic load rating Cr (N)
199000
Basic static load rating C0r (N)
180000
Fatigue limit load Cur (N)
10700
Limiting speed nG (rpm)
2,950
Effective load centre a (mm)
100.8
Weight
Weight (kg)
6.3
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
92
Housing shoulder Da (mm)
158
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 900 rpm
4
49,750
64
1,185
6
33,167
216
4,000
8
24,875
512
9,481
10
19,900
1,000
18,519
15
13,267
3,375
62,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 199,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.342 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
