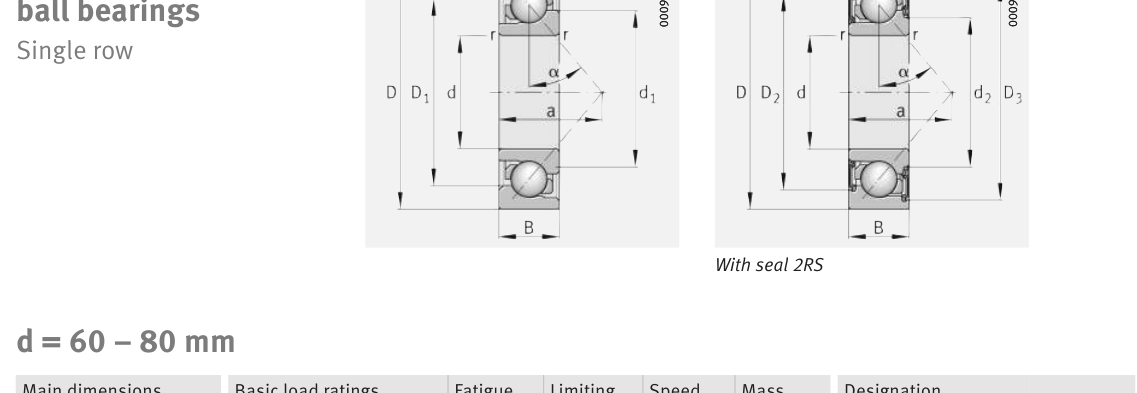

Original catalogue drawing - FAG Schaeffler HR 1, page 310
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
70
2.7559
D
Outside diameter
125
4.9213
B
Inner-ring / bearing width
24
0.9449
r
Chamfer (min)
1.5
0.0591
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
70
Outside dia. D (mm)
125
Width B (mm)
24
Inner-ring shoulder dia. D1 (mm)
104
Seal outside dia. D2 (mm)
107.6
Dimension D3 (mm)
117.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
16636
Basic static load rating Cor (lbs)
13938
Basic dynamic load rating Cr (N)
74000
Basic static load rating C0r (N)
62000
Fatigue limit load Cur (N)
4200
Limiting speed nG (rpm)
3,000
Effective load centre a (mm)
53
Weight
Weight (kg)
1.081
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Chamfer r1 min (mm)
1
Shaft shoulder da (mm)
79
Housing shoulder Da (mm)
116
Housing shoulder Db (mm)
119.4
Housing fillet ra max (mm)
1.5
Housing fillet ra1 max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,000 rpm
4
18,500
64
1,067
6
12,333
216
3,600
8
9,250
512
8,533
10
7,400
1,000
16,667
15
4,933
3,375
56,250
Basic rating life per ISO 281: L10 = (C/P)3 with C = 74,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.310 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
