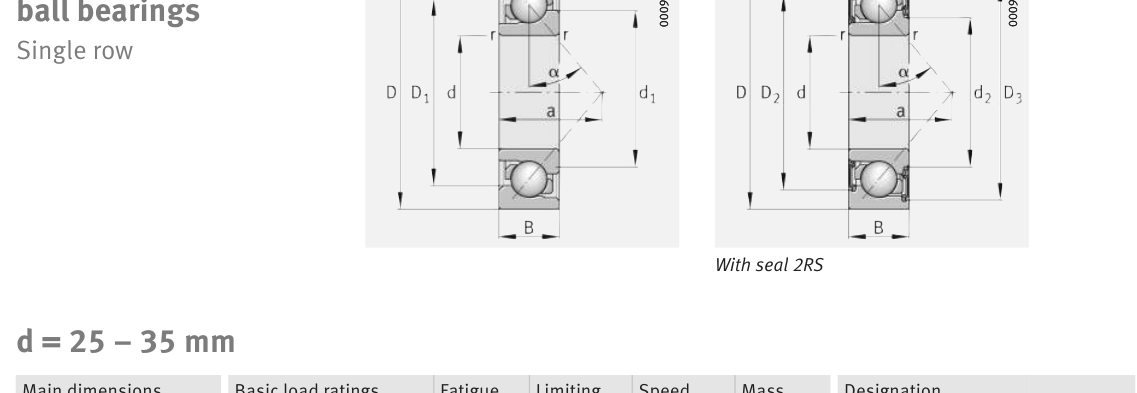

Original catalogue drawing - FAG Schaeffler HR 1, page 306
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
25
0.9843
D
Outside diameter
62
2.4409
B
Inner-ring / bearing width
17
0.6693
r
Chamfer (min)
1.1
0.0433
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
25
Outside dia. D (mm)
62
Width B (mm)
17
Inner-ring shoulder dia. D1 (mm)
48
Seal outside dia. D2 (mm)
50.3
Dimension D3 (mm)
57.1
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
6295
Basic static load rating Cor (lbs)
3552
Basic dynamic load rating Cr (N)
28000
Basic static load rating C0r (N)
15800
Fatigue limit load Cur (N)
1070
Limiting speed nG (rpm)
7,100
Effective load centre a (mm)
27
Weight
Weight (kg)
0.231
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.1
Chamfer r1 min (mm)
0.6
Shaft shoulder da (mm)
32
Housing shoulder Da (mm)
55
Housing shoulder Db (mm)
57.8
Housing fillet ra max (mm)
1
Housing fillet ra1 max (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,300 rpm
4
7,000
64
464
6
4,667
216
1,565
8
3,500
512
3,710
10
2,800
1,000
7,246
15
1,867
3,375
24,457
Basic rating life per ISO 281: L10 = (C/P)3 with C = 28,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.306 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
