HCS7001-C-T-P4SFAGPrecision / Angular Contact

Name: FAG HCS7001-C-T-P4S Precision / Angular Contact Bearing
Brand: FAG
SKU: HCS7001-C-T-P4S

HCS7001-C-T-P4S is a FAG precision / angular contact bearing, bore 12 mm, O.D. 28 mm, width 8 mm. Dimensions, drawing, interchanges and price.

High precision classHybrid ceramic balls

Request a quote WhatsApp Email us Search the catalog

Bore d12mm

Outside dia. D28mm

Width B8mm

Dynamic Cr1.86kN

Static C0r1.12kN

Limiting speed80,000rpm

Weight0.022kg

Cr / C0r1.66

Mean dia. dm20mm

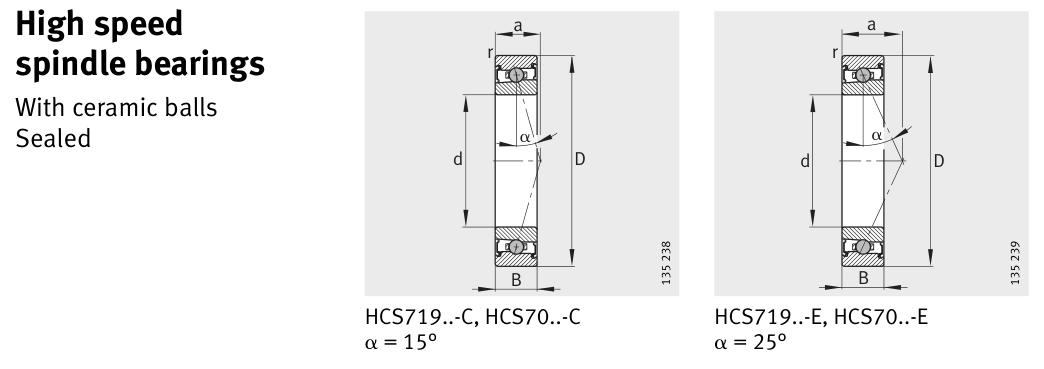

Original catalogue drawing - FAG Schaeffler HR 1, page 308

HCS7001-C-T-P4S FAG Precision / Angular Contact bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	12	0.4724
D	Outside diameter	28	1.1024
B	Inner-ring / bearing width	8	0.315
r	Chamfer (min)	0.3	0.0118

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	12
Outside dia. D (mm)	28
Width B (mm)	8

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	418
Basic static load rating Cor (lbs)	252
Basic dynamic load rating Cr (N)	1860
Basic static load rating C0r (N)	1120
Fatigue limit load Cur (N)	70
Limiting speed nG (rpm)	80,000
Effective load centre a (mm)	7

Weight

Weight (kg)	0.022

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	0.3
Shaft shoulder da (mm)	16.5
Housing shoulder Da (mm)	24.5
Housing fillet ra max (mm)	0.3

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 3,000 rpm
4	465	64	356
6	310	216	1,200
8	232	512	2,844
10	186	1,000	5,556
15	124	3,375	18,750

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 1,860 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.308 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
