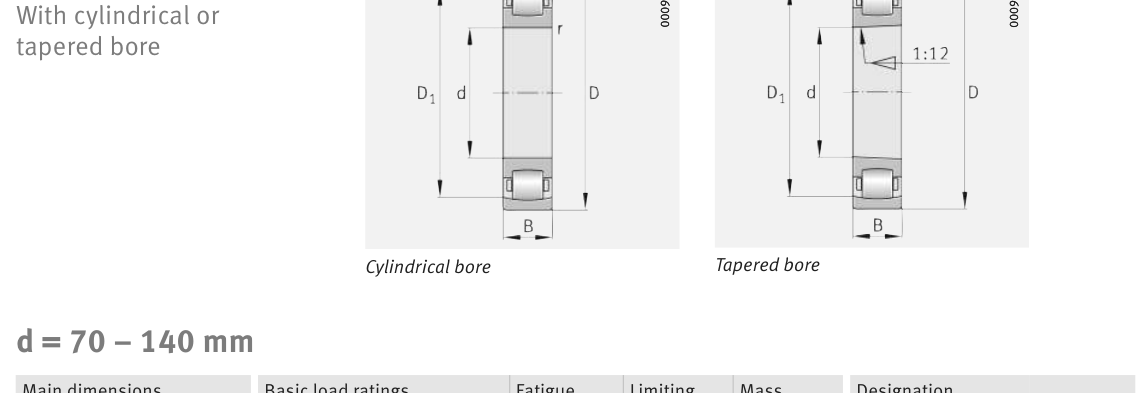

Original catalogue drawing - FAG Schaeffler HR 1, page 656
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
85
3.3465
D
Outside diameter
150
5.9055
B
Inner-ring / bearing width
28
1.1024
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
85
Outside dia. D (mm)
150
Width B (mm)
28
Inner-ring shoulder dia. D1 (mm)
133.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
34845
Basic static load rating Cor (lbs)
45187
Basic dynamic load rating Cr (N)
155000
Basic static load rating C0r (N)
201000
Fatigue limit load Cur (N)
20200
Limiting speed nG (rpm)
4,750
Weight
Weight (kg)
2.22
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Shaft shoulder da (mm)
96
Housing shoulder Da (mm)
139
Housing fillet ra max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,500 rpm
4
38,750
102
1,129
6
25,833
392
4,361
8
19,375
1,024
11,378
10
15,500
2,154
23,938
15
10,333
8,323
92,483
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 155,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.656 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
