20230-K-MB-C3FAGSpherical Roller

Name: FAG 20230-K-MB-C3 Spherical Roller Bearing
Brand: FAG
SKU: 20230-K-MB-C3

20230-K-MB-C3 is a FAG spherical roller bearing, bore 150 mm, O.D. 270 mm, width 45 mm. Dimensions, drawing, interchanges and price.

Tapered boreC3 clearanceBrass cage

Request a quote WhatsApp Email us Search the catalog

Bore d150mm

Outside dia. D270mm

Width B45mm

Dynamic Cr430kN

Static C0r610kN

Limiting speed2,850rpm

Weight11.6kg

Cr / C0r0.7

Mean dia. dm210mm

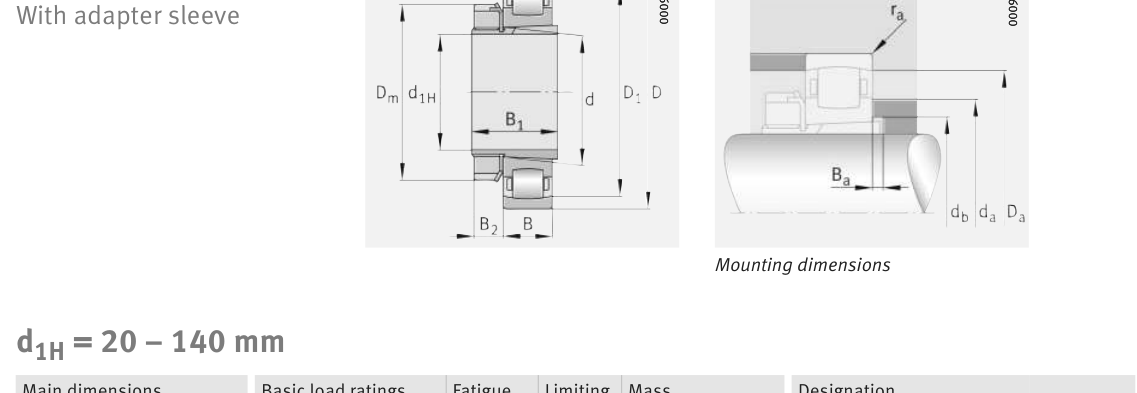

Original catalogue drawing - FAG Schaeffler HR 1, page 660

20230-K-MB-C3 FAG Spherical Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	150	5.9055
D	Outside diameter	270	10.6299
B	Inner-ring / bearing width	45	1.7717
r	Chamfer (min)	3	0.1181

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	150
Outside dia. D (mm)	270
Width B (mm)	45
Inner-ring shoulder dia. D1 (mm)	238.6

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	96668
Basic static load rating Cor (lbs)	137133
Basic dynamic load rating Cr (N)	430000
Basic static load rating C0r (N)	610000
Fatigue limit load Cur (N)	54000
Limiting speed nG (rpm)	2,850

Weight

Weight (kg)	11.6

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	3
Shaft shoulder da (mm)	181
Shaft shoulder db (mm)	158
Housing shoulder Da (mm)	256
Housing fillet ra max (mm)	2.5

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 900 rpm
4	107,500	102	1,881
6	71,667	392	7,268
8	53,750	1,024	18,963
10	43,000	2,154	39,897
15	28,667	8,323	154,138

Basic rating life per ISO 281: L₁₀ = (C/P)^10/3 with C = 430,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.660 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
