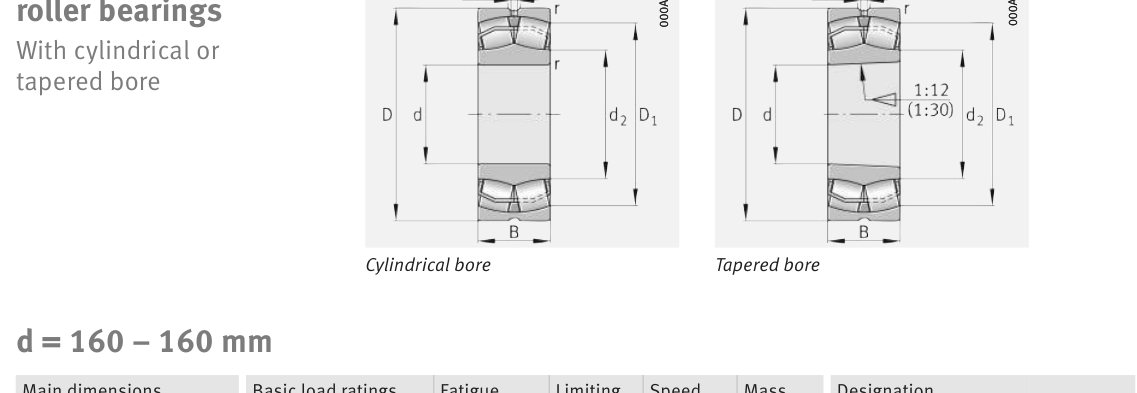

Original catalogue drawing - FAG Schaeffler HR 1, page 714
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
160
6.2992
D
Outside diameter
290
11.4173
B
Inner-ring / bearing width
80
3.1496
r
Chamfer (min)
3
0.1181
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
160
Outside dia. D (mm)
290
Width B (mm)
80
Inner-ring shoulder dia. D1 (mm)
258.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
258530
Basic static load rating Cor (lbs)
314733
Basic dynamic load rating Cr (N)
1.15e+06
Basic static load rating C0r (N)
1.4e+06
Fatigue limit load Cur (N)
125000
Factor e
0.26
Factor Y0
2.58
Limiting speed nG (rpm)
2,650
Reference speed nB (rpm)
1,900
Weight
Weight (kg)
23.3
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
3
Shaft shoulder da (mm)
174
Housing shoulder Da (mm)
276
Housing fillet ra max (mm)
2.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 800 rpm
4
287,500
102
2,117
6
191,667
392
8,177
8
143,750
1,024
21,333
10
115,000
2,154
44,884
15
76,667
8,323
173,406
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,150,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.714 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
