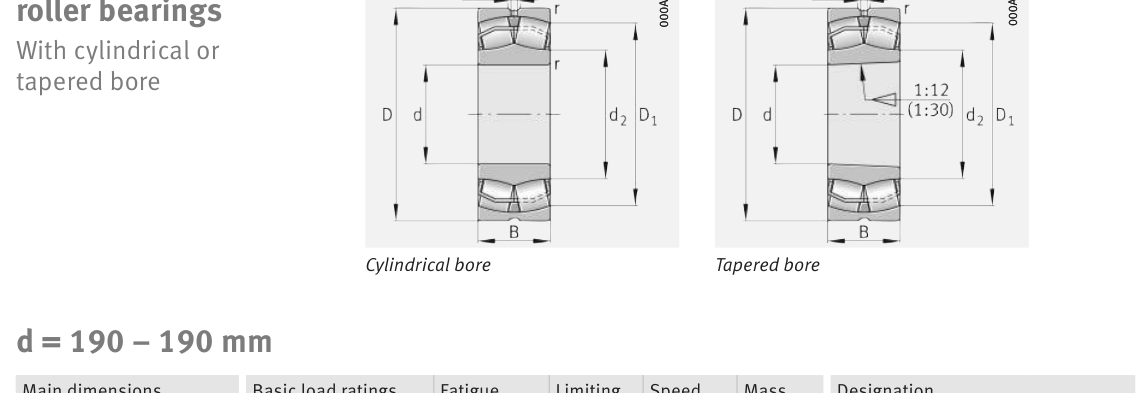

Original catalogue drawing - FAG Schaeffler HR 1, page 720
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
190
7.4803
D
Outside diameter
290
11.4173
B
Inner-ring / bearing width
75
2.9528
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
190
Outside dia. D (mm)
290
Width B (mm)
75
Inner-ring shoulder dia. D1 (mm)
264.5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
242794
Basic static load rating Cor (lbs)
348454
Basic dynamic load rating Cr (N)
1.08e+06
Basic static load rating C0r (N)
1.55e+06
Fatigue limit load Cur (N)
179000
Factor e
0.23
Factor Y0
2.92
Limiting speed nG (rpm)
2,490
Reference speed nB (rpm)
1,660
Weight
Weight (kg)
17.2
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
200.2
Housing shoulder Da (mm)
279.8
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 800 rpm
4
270,000
102
2,117
6
180,000
392
8,177
8
135,000
1,024
21,333
10
108,000
2,154
44,884
15
72,000
8,323
173,406
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,080,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.720 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
