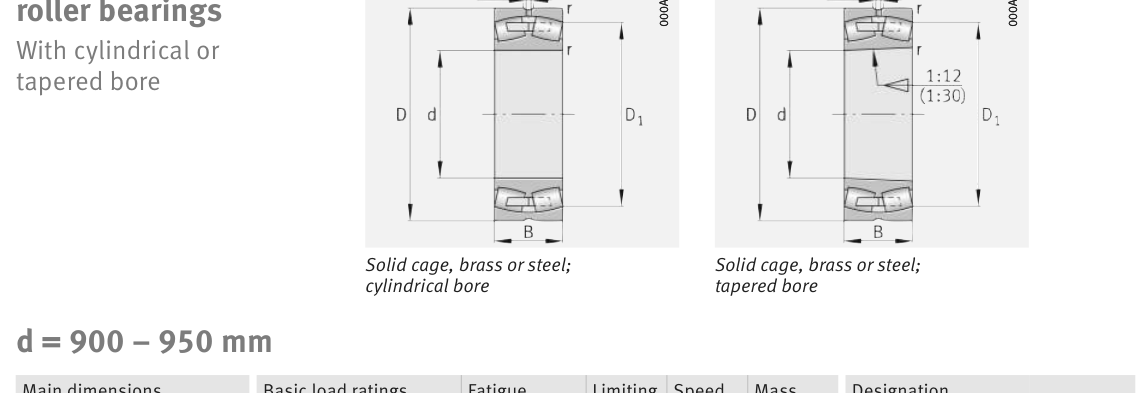

Original catalogue drawing - FAG Schaeffler HR 1, page 746
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
900
35.4331
D
Outside diameter
1420
55.9055
B
Inner-ring / bearing width
412
16.2205
r
Chamfer (min)
12
0.4724
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
900
Outside dia. D (mm)
1420
Width B (mm)
412
Inner-ring shoulder dia. D1 (mm)
1
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
4046561
Basic static load rating Cor (lbs)
9104762
Basic dynamic load rating Cr (N)
1.8e+07
Basic static load rating C0r (N)
4.05e+07
Fatigue limit load Cur (N)
2.55e+06
Factor e
0.29
Factor Y0
2.28
Limiting speed nG (rpm)
365
Reference speed nB (rpm)
149
Weight
Weight (kg)
2469.0
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
12
Shaft shoulder da (mm)
948
Housing shoulder Da (mm)
1372
Housing fillet ra max (mm)
10
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 100 rpm
4
4,500,000
102
16,932
6
3,000,000
392
65,416
8
2,250,000
1,024
170,667
10
1,800,000
2,154
359,072
15
1,200,000
8,323
1,387,244
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 18,000,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.746 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
