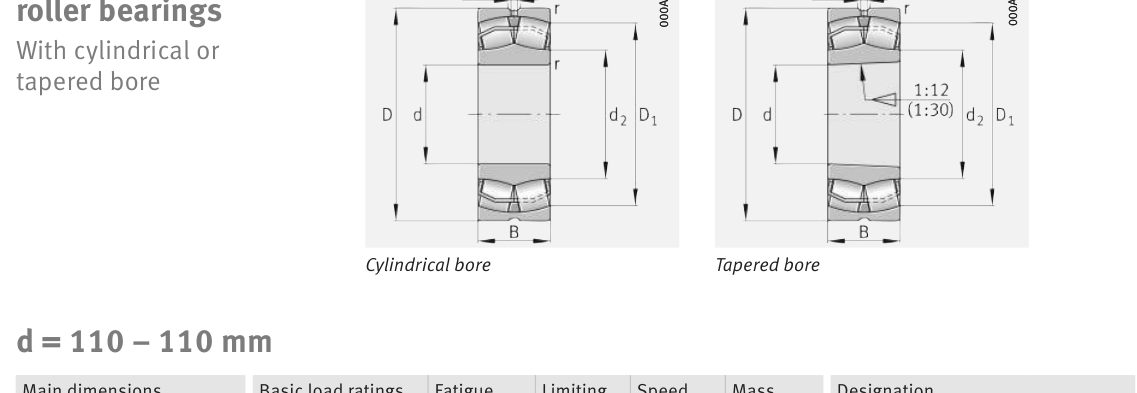

Original catalogue drawing - FAG Schaeffler HR 1, page 704
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
110
4.3307
D
Outside diameter
180
7.0866
B
Inner-ring / bearing width
56
2.2047
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
110
Outside dia. D (mm)
180
Width B (mm)
56
Inner-ring shoulder dia. D1 (mm)
160
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
119149
Basic static load rating Cor (lbs)
152870
Basic dynamic load rating Cr (N)
530000
Basic static load rating C0r (N)
680000
Fatigue limit load Cur (N)
60000
Factor e
0.28
Factor Y0
2.34
Limiting speed nG (rpm)
3,700
Reference speed nB (rpm)
2,550
Weight
Weight (kg)
5.3
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Shaft shoulder da (mm)
121
Housing shoulder Da (mm)
169
Housing fillet ra max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,200 rpm
4
132,500
102
1,411
6
88,333
392
5,451
8
66,250
1,024
14,222
10
53,000
2,154
29,923
15
35,333
8,323
115,604
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 530,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.704 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
