23940-S-MB is a FAG spherical roller bearing, bore 200 mm, O.D. 280 mm, width 60 mm, dynamic rating 550 kN. Dimensions, drawing, interchanges and price.

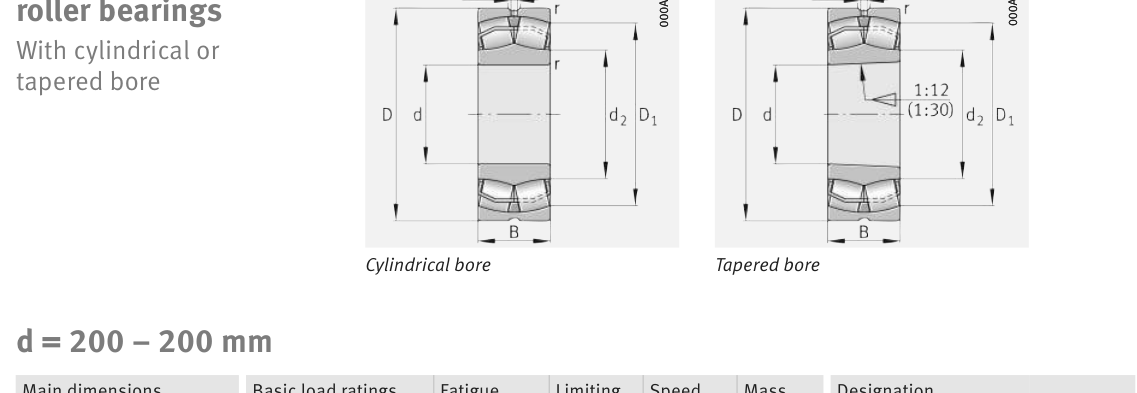

Original catalogue drawing - FAG Schaeffler HR 1, page 722
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
200
7.874
D
Outside diameter
280
11.0236
B
Inner-ring / bearing width
60
2.3622
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
200
Outside dia. D (mm)
280
Width B (mm)
60
Inner-ring shoulder dia. D1 (mm)
256.9
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
123645
Basic static load rating Cor (lbs)
240546
Basic dynamic load rating Cr (N)
550000
Basic static load rating C0r (N)
1.07e+06
Fatigue limit load Cur (N)
71000
Factor e
0.2
Factor Y0
3.34
Limiting speed nG (rpm)
2,800
Reference speed nB (rpm)
1,650
Weight
Weight (kg)
11.8
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
210.2
Housing shoulder Da (mm)
269.8
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 900 rpm
4
137,500
102
1,881
6
91,667
392
7,268
8
68,750
1,024
18,963
10
55,000
2,154
39,897
15
36,667
8,323
154,138
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 550,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.722 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
