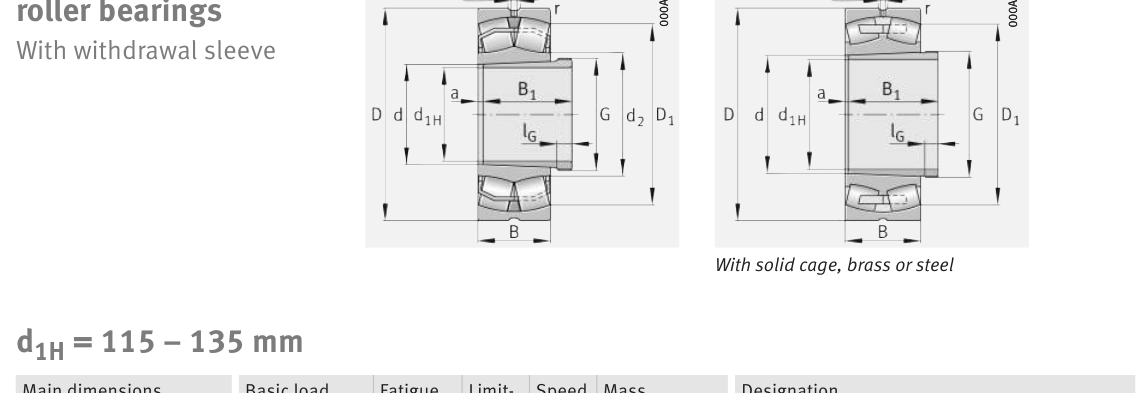

Original catalogue drawing - FAG Schaeffler HR 1, page 774
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
120
4.7244
D
Outside diameter
180
7.0866
B
Inner-ring / bearing width
60
2.3622
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
120
Outside dia. D (mm)
180
Width B (mm)
60
Inner-ring shoulder dia. D1 (mm)
159.8
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
101164
Basic static load rating Cor (lbs)
155118
Basic dynamic load rating Cr (N)
450000
Basic static load rating C0r (N)
690000
Fatigue limit load Cur (N)
84000
Factor e
0.29
Factor Y0
2.28
Limiting speed nG (rpm)
3,450
Reference speed nB (rpm)
2,360
Effective load centre a (mm)
9
Weight
Weight (kg)
5.4
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Shaft shoulder da (mm)
128.8
Housing shoulder Da (mm)
171.2
Housing fillet ra max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,100 rpm
4
112,500
102
1,539
6
75,000
392
5,947
8
56,250
1,024
15,515
10
45,000
2,154
32,643
15
30,000
8,323
126,113
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 450,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.774 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
