24068-BEA-XL-K30-MB1FAGSpherical Roller

24068-BEA-XL-K30-MB1 is a FAG spherical roller bearing, bore 340 mm, O.D. 520 mm, width 180 mm. Dimensions, drawing, interchanges and price.

Tapered boreBrass cageX-life
Request a quoteEmail usSearch the catalog
Bore d340mm
Outside dia. D520mm
Width B180mm
Dynamic Cr3550kN
Static C0r6200kN
Limiting speed1,080rpm
Weight136kg
Cr / C0r0.57
Mean dia. dm430mm

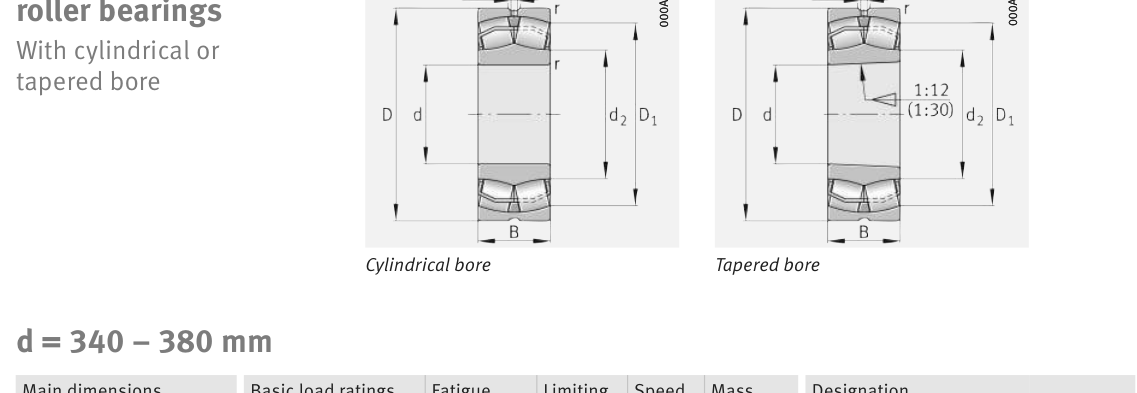

Original catalogue drawing - FAG Schaeffler HR 1, page 730

24068-BEA-XL-K30-MB1 FAG Spherical Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

DdBOutside dia. D520 mmBore d340 mmWidth B180 mm

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

SymbolDimensionmminch
dBore diameter34013.3858
DOutside diameter52020.4724
BInner-ring / bearing width1807.0866
rChamfer (min)50.1969

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)340
Outside dia. D (mm)520
Width B (mm)180
Inner-ring shoulder dia. D1 (mm)456.1

Load ratings & speeds

Basic dynamic load rating Cr (lbs)798072
Basic static load rating Cor (lbs)1393815
Basic dynamic load rating Cr (N)3.55e+06
Basic static load rating C0r (N)6.2e+06
Fatigue limit load Cur (N)520000
Factor e0.32
Factor Y02.07
Limiting speed nG (rpm)1,080
Reference speed nB (rpm)610

Weight

Weight (kg)136.0

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)5
Shaft shoulder da (mm)358
Housing shoulder Da (mm)502
Housing fillet ra max (mm)4

Bearing life (ISO 281 basic rating life)

C / PEquivalent load P (N)L10 (106 rev)L10h at 300 rpm
4887,5001025,644
6591,66739221,805
8443,7501,02456,889
10355,0002,154119,691
15236,6678,323462,415

Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 3,550,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.

Source & traceability

BrandFAG
Source catalogueFAG / Schaeffler Rolling Bearings HR 1
Catalogue pagep.730 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

DesignationBrandTypedDB/TDyn. ratingkg
24068CAME4NSKSpherical Roller340520180655,000 lbs133.719

Same dimensions, same brand

DesignationBrandTypedDB/TDyn. ratingkg
24068-BEA-XL-MB1FAGSpherical Roller3405201803550 kN139

Series variants (different suffix)

DesignationBrandTypedDB/TDyn. ratingkg
24068-BEA-XL-MB1FAGSpherical Roller3405201803550 kN139

Nearby bore sizes

DesignationBrandTypedDB/TDyn. ratingkg
22268-BEA-XL-K-MB1FAGSpherical Roller3406201654100 kN217
22268-BEA-XL-MB1FAGSpherical Roller3406201654100 kN221
23068-BEA-XL-K-MB1FAGSpherical Roller3405201332700 kN101
23068-BEA-XL-MB1FAGSpherical Roller3405201332700 kN104
23168-BEA-XL-2RSR-MB1FAGSpherical Roller3405801904400 kN210
23168-BEA-XL-K-MB1FAGSpherical Roller3405801904350 kN204
23168-BEA-XL-MB1FAGSpherical Roller3405801904350 kN210
23268-BEA-XL-K-MB1FAGSpherical Roller3406202245300 kN292

Request a quotation for 24068-BEA-XL-K30-MB1

Send us the quantity you need and we will come back with price and lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.

Online enquiry formrichard@bearingsfit.com
