24072-BEA-XL-K30-MB1FAGSpherical Roller

24072-BEA-XL-K30-MB1 is a FAG spherical roller bearing, bore 360 mm, O.D. 540 mm, width 180 mm. Dimensions, drawing, interchanges and price.

Tapered boreBrass cageX-life
Request a quoteEmail usSearch the catalog
Bore d360mm
Outside dia. D540mm
Width B180mm
Dynamic Cr3650kN
Static C0r6600kN
Limiting speed1,040rpm
Weight141kg
Cr / C0r0.55
Mean dia. dm450mm

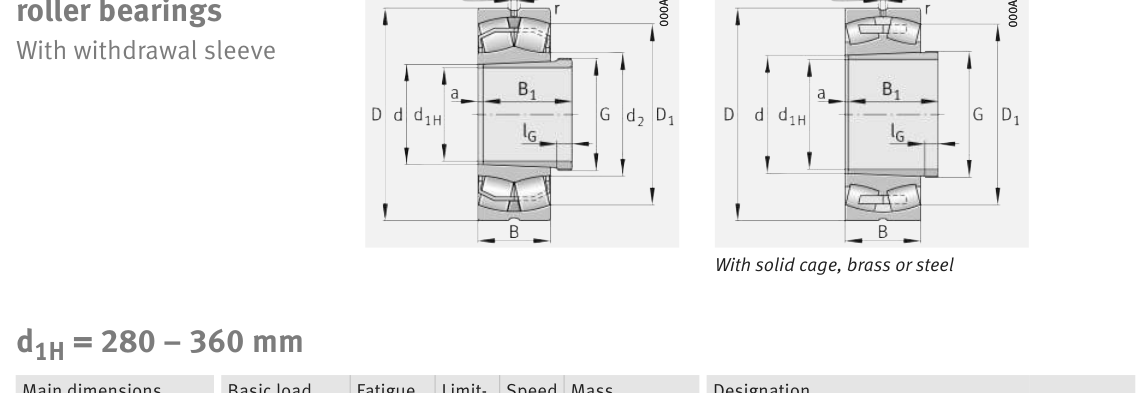

Original catalogue drawing - FAG Schaeffler HR 1, page 782

24072-BEA-XL-K30-MB1 FAG Spherical Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

DdBOutside dia. D540 mmBore d360 mmWidth B180 mm

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

SymbolDimensionmminch
dBore diameter36014.1732
DOutside diameter54021.2598
BInner-ring / bearing width1807.0866
rChamfer (min)50.1969

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)360
Outside dia. D (mm)540
Width B (mm)180
Inner-ring shoulder dia. D1 (mm)476.4

Load ratings & speeds

Basic dynamic load rating Cr (lbs)820553
Basic static load rating Cor (lbs)1483739
Basic dynamic load rating Cr (N)3.65e+06
Basic static load rating C0r (N)6.6e+06
Fatigue limit load Cur (N)550000
Factor e0.3
Factor Y02.18
Limiting speed nG (rpm)1,040
Effective load centre a (mm)20

Weight

Weight (kg)141.0

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)5
Shaft shoulder da (mm)378
Housing shoulder Da (mm)522
Housing fillet ra max (mm)4

Bearing life (ISO 281 basic rating life)

C / PEquivalent load P (N)L10 (106 rev)L10h at 300 rpm
4912,5001025,644
6608,33339221,805
8456,2501,02456,889
10365,0002,154119,691
15243,3338,323462,415

Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 3,650,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.

Source & traceability

BrandFAG
Source catalogueFAG / Schaeffler Rolling Bearings HR 1
Catalogue pagep.782 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
