24136-BE-XL-2VSRFAGSpherical Roller

Name: FAG 24136-BE-XL-2VSR Spherical Roller Bearing
Brand: FAG
SKU: 24136-BE-XL-2VSR

24136-BE-XL-2VSR is a FAG spherical roller bearing, bore 180 mm, O.D. 300 mm, width 118 mm. Dimensions, drawing, interchanges and price.

X-life

Request a quote WhatsApp Email us Search the catalog

Bore d180mm

Outside dia. D300mm

Width B118mm

Dynamic Cr1460kN

Static C0r2170kN

Limiting speed500rpm

Weight33.2kg

Cr / C0r0.67

Mean dia. dm240mm

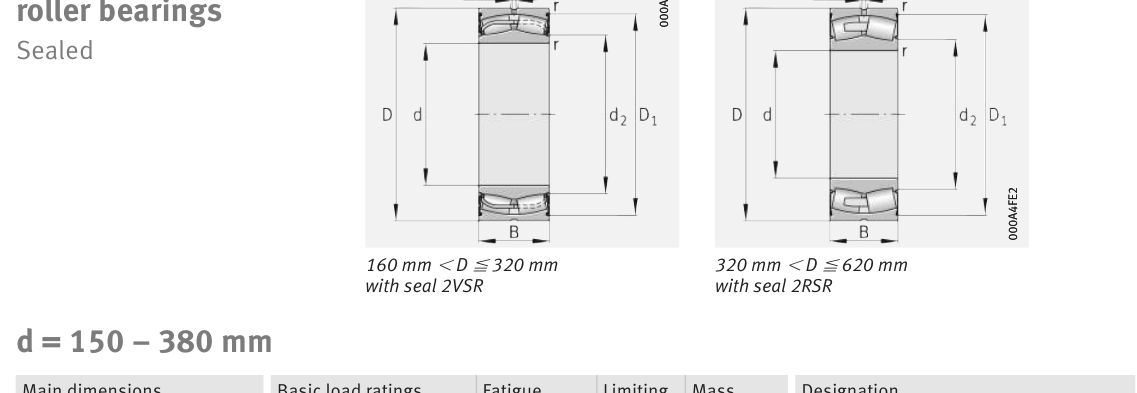

Original catalogue drawing - FAG Schaeffler HR 1, page 754

24136-BE-XL-2VSR FAG Spherical Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	180	7.0866
D	Outside diameter	300	11.811
B	Inner-ring / bearing width	118	4.6457
r	Chamfer (min)	3	0.1181

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	180
Outside dia. D (mm)	300
Width B (mm)	118
Inner-ring shoulder dia. D1 (mm)	276.3

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	328221
Basic static load rating Cor (lbs)	487835
Basic dynamic load rating Cr (N)	1.46e+06
Basic static load rating C0r (N)	2.17e+06
Fatigue limit load Cur (N)	203000
Factor e	0.36
Factor Y0	1.82
Limiting speed nG (rpm)	500

Weight

Weight (kg)	33.2

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	3
Shaft shoulder da (mm)	194
Housing shoulder Da (mm)	286
Housing fillet ra max (mm)	2.5

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 100 rpm
4	365,000	102	16,932
6	243,333	392	65,416
8	182,500	1,024	170,667
10	146,000	2,154	359,072
15	97,333	8,323	1,387,244

Basic rating life per ISO 281: L₁₀ = (C/P)^10/3 with C = 1,460,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.754 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
24136CAME4	NSK	Spherical Roller	180	300	118	267,000 lbs	32.123
24136CE4	NSK	Spherical Roller	180	300	118	268,000 lbs	32.79

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
24136-BE-XL	FAG	Spherical Roller	180	300	118	1460 kN	33.2
24136-BE-XL-K30	FAG	Spherical Roller	180	300	118	1460 kN	32.5

Series variants (different suffix)

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
24136-BE-XL	FAG	Spherical Roller	180	300	118	1460 kN	33.2
24136-BE-XL-K30	FAG	Spherical Roller	180	300	118	1460 kN	32.5

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
20236-MB	FAG	Spherical Roller	180	320	52	590 kN	18.4
22236-E1-XL	FAG	Spherical Roller	180	320	86	1360 kN	29.2
22236-E1-XL-K	FAG	Spherical Roller	180	320	86	1360 kN	28.5
22336-BE-XL	FAG	Spherical Roller	180	380	126	2060 kN	68.1
22336-BE-XL-JPA-T41A	FAG	Spherical Roller	180	380	126	2060 kN	68.1
22336-BE-XL-K	FAG	Spherical Roller	180	380	126	2060 kN	66.6
22336-BE-XL-K-JPA-T41A	FAG	Spherical Roller	180	380	126	2060 kN	66.6
23036-E1-XL-K-TVPB	FAG	Spherical Roller	180	280	74	1040 kN	15.6
