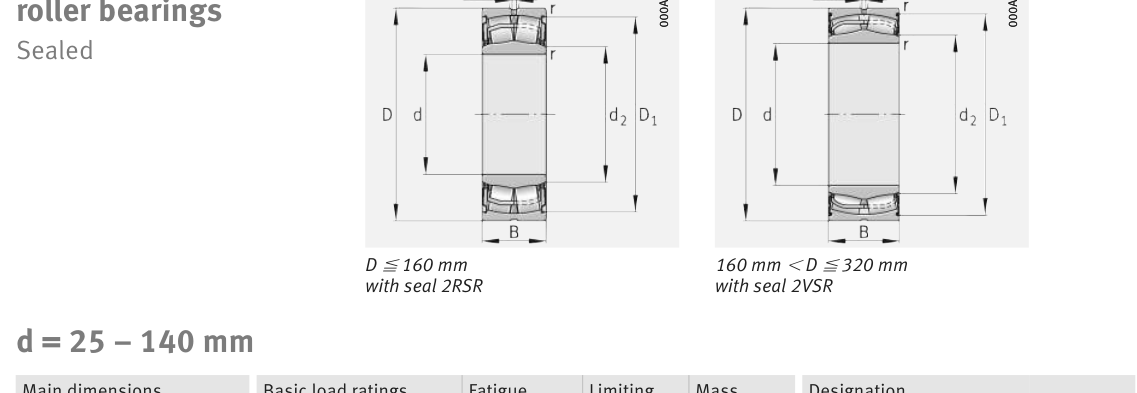

Original catalogue drawing - FAG Schaeffler HR 1, page 752
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
30
1.1811
D
Outside diameter
62
2.4409
B
Inner-ring / bearing width
25
0.9843
r
Chamfer (min)
1
0.0394
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
30
Outside dia. D (mm)
62
Width B (mm)
25
Inner-ring shoulder dia. D1 (mm)
55.5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
14388
Basic static load rating Cor (lbs)
12814
Basic dynamic load rating Cr (N)
64000
Basic static load rating C0r (N)
57000
Fatigue limit load Cur (N)
6900
Factor e
0.3
Factor Y0
2.21
Limiting speed nG (rpm)
3,150
Weight
Weight (kg)
0.4
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1
Shaft shoulder da (mm)
35
Housing shoulder Da (mm)
56.4
Housing fillet ra max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,000 rpm
4
16,000
102
1,693
6
10,667
392
6,542
8
8,000
1,024
17,067
10
6,400
2,154
35,907
15
4,267
8,323
138,724
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 64,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.752 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
