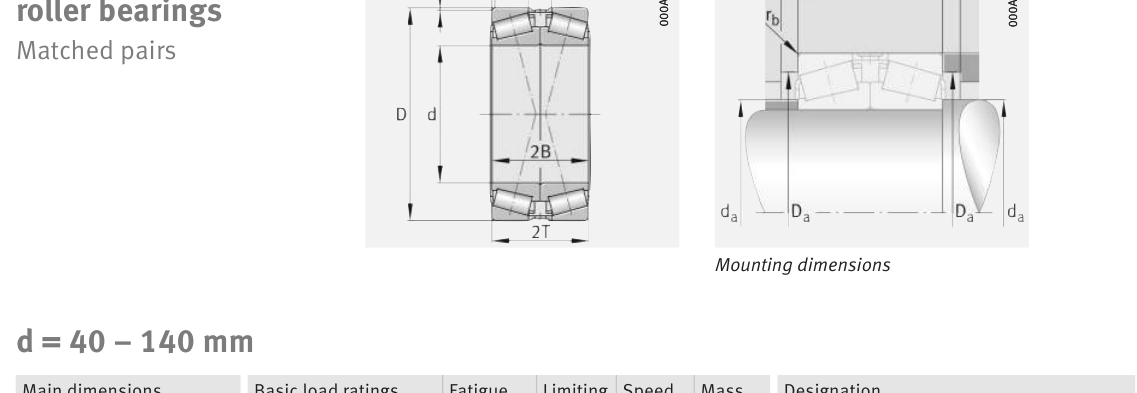

Original catalogue drawing - FAG Schaeffler HR 1, page 632
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
100
3.937
D
Outside diameter
180
7.0866
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
100
Outside dia. D (mm)
180
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
96668
Basic static load rating Cor (lbs)
146126
Basic dynamic load rating Cr (N)
430000
Basic static load rating C0r (N)
650000
Basic dynamic axial rating Ca (N)
5
Fatigue limit load Cur (N)
71000
Factor e
0.42
Factor Y0
1.57
Limiting speed nG (rpm)
4,000
Reference speed nB (rpm)
2,650
Weight
Weight (kg)
7.82
Mounting dimensions (fillets / shoulders)
Shaft shoulder da (mm)
116
Housing shoulder Da (mm)
157
Fillet rb max (mm)
2.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,300 rpm
4
107,500
102
1,302
6
71,667
392
5,032
8
53,750
1,024
13,128
10
43,000
2,154
27,621
15
28,667
8,323
106,711
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 430,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.632 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
