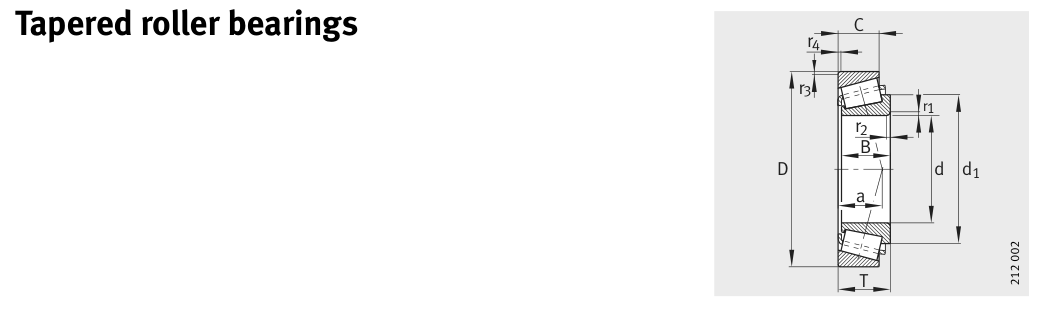

Original catalogue drawing - FAG Schaeffler HR 1, page 488
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
160
6.2992
D
Outside diameter
290
11.4173
B
Inner-ring / bearing width
48
1.8898
T
Overall assembly width
52
2.0472
C
Cup / outer-ring width
40
1.5748
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
160
Outside dia. D (mm)
290
Width B (mm)
48
Overall width T (mm)
52
Cup width C (mm)
40
Inner-ring OD d1 (mm)
216.5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
92172
Basic static load rating Cor (lbs)
130389
Basic dynamic load rating Cr (N)
410000
Basic static load rating C0r (N)
580000
Basic dynamic axial rating Ca (N)
9
Fatigue limit load Cur (N)
66000
Factor e
0.37
Factor Y
1.61
Factor Y0
0.89
Limiting speed nG (rpm)
2,400
Reference speed nB (rpm)
1,870
Effective load centre a (mm)
51
Weight
Weight (kg)
13.8
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
4
Shaft shoulder da (mm)
189
Shaft shoulder db (mm)
174
Housing shoulder Da (mm)
276
Housing shoulder Db (mm)
269
Housing fillet ra max (mm)
4
Fillet rb max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 800 rpm
4
102,500
102
2,117
6
68,333
392
8,177
8
51,250
1,024
21,333
10
41,000
2,154
44,884
15
27,333
8,323
173,406
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 410,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.488 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
