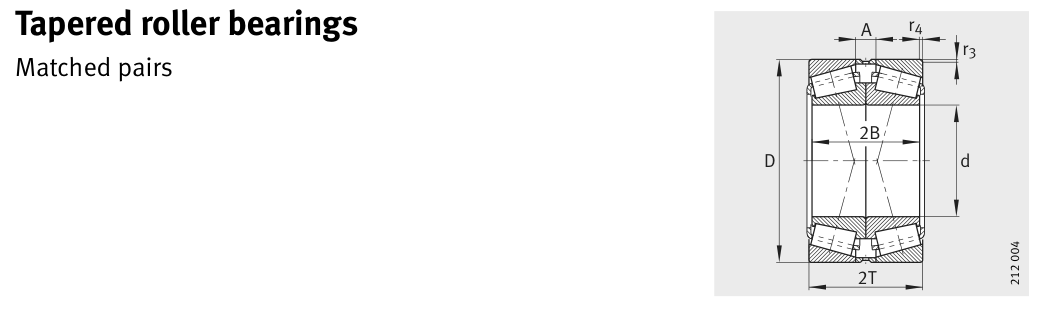

Original catalogue drawing - FAG Schaeffler HR 1, page 492
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
55
2.1654
D
Outside diameter
120
4.7244
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
55
Outside dia. D (mm)
120
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
46985
Basic static load rating Cor (lbs)
61822
Basic dynamic load rating Cr (N)
209000
Basic static load rating C0r (N)
275000
Basic dynamic axial rating Ca (N)
4
Fatigue limit load Cur (N)
32500
Factor e
0.83
Factor Y0
0.8
Weight
Weight (kg)
3.4
Mounting dimensions (fillets / shoulders)
Shaft shoulder da (mm)
68
Housing shoulder Da (mm)
110
Fillet rb max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
52,250
102
3,386
6
34,833
392
13,083
8
26,125
1,024
34,133
10
20,900
2,154
71,814
15
13,933
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 209,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.492 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
