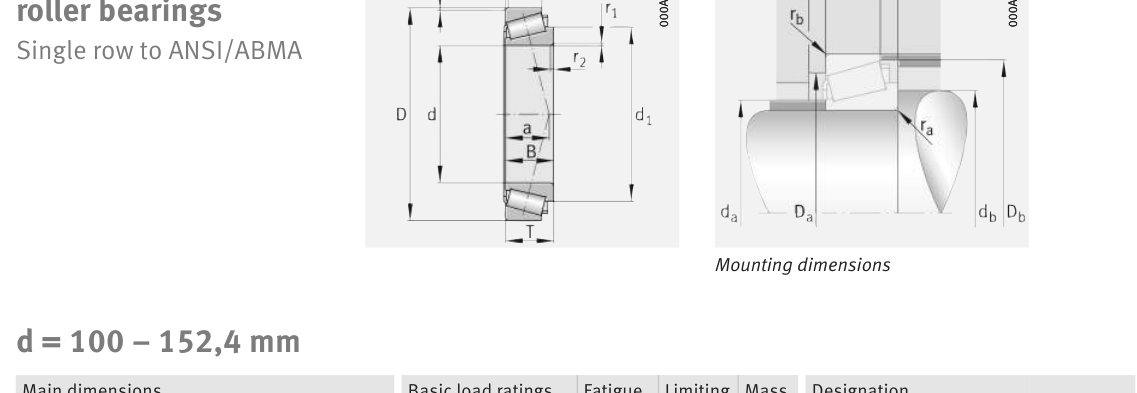

Original catalogue drawing - FAG Schaeffler HR 1, page 628
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
152.4
6
D
Outside diameter
268.288
10.5625
B
Inner-ring / bearing width
74.612
2.9375
T
Overall assembly width
74.612
2.9375
C
Cup / outer-ring width
57.15
2.25
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
152.4
Outside dia. D (mm)
268.288
Width B (mm)
74.612
Overall width T (mm)
74.612
Cup width C (mm)
57.15
Inner-ring OD d1 (mm)
204
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
150622
Basic static load rating Cor (lbs)
240546
Basic dynamic load rating Cr (N)
670000
Basic static load rating C0r (N)
1.07e+06
Basic dynamic axial rating Ca (N)
8
Fatigue limit load Cur (N)
127000
Factor e
0.39
Factor Y
1.55
Factor Y0
0.85
Limiting speed nG (rpm)
2,500
Effective load centre a (mm)
60
Weight
Weight (kg)
18.2
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
6.4
Shaft shoulder da (mm)
171
Shaft shoulder db (mm)
181
Housing shoulder Da (mm)
237
Housing shoulder Db (mm)
249
Housing fillet ra max (mm)
6.4
Fillet rb max (mm)
6.4
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 800 rpm
4
167,500
102
2,117
6
111,667
392
8,177
8
83,750
1,024
21,333
10
67,000
2,154
44,884
15
44,667
8,323
173,406
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 670,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.628 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
