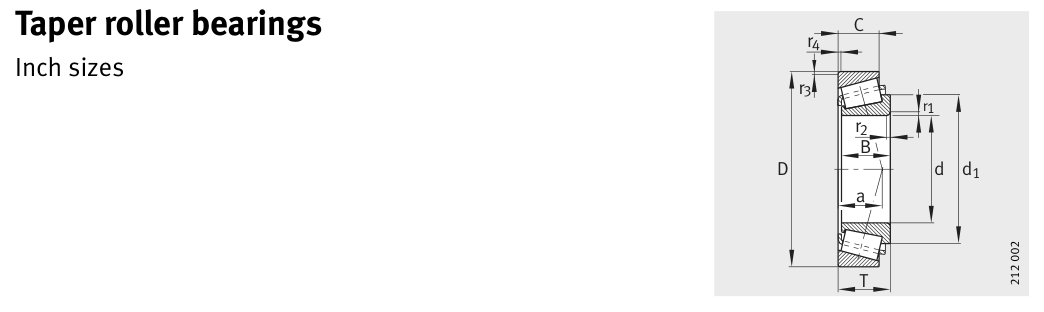

Original catalogue drawing - FAG Schaeffler HR 1, page 494
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
89.975
3.5423
D
Outside diameter
146.975
5.7864
B
Inner-ring / bearing width
40
1.5748
T
Overall assembly width
40
1.5748
C
Cup / outer-ring width
32.5
1.2795
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
89.975
Outside dia. D (mm)
146.975
Width B (mm)
40
Overall width T (mm)
40
Cup width C (mm)
32.5
Inner-ring OD d1 (mm)
119
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
52156
Basic static load rating Cor (lbs)
78683
Basic dynamic load rating Cr (N)
232000
Basic static load rating C0r (N)
350000
Basic dynamic axial rating Ca (N)
5.5
Fatigue limit load Cur (N)
43000
Factor e
0.33
Factor Y
1.8
Factor Y0
0.99
Limiting speed nG (rpm)
4,800
Effective load centre a (mm)
32
Weight
Weight (kg)
2.57
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
7.1
Shaft shoulder da (mm)
99
Shaft shoulder db (mm)
112
Housing shoulder Da (mm)
133
Housing shoulder Db (mm)
141
Housing fillet ra max (mm)
7.1
Fillet rb max (mm)
3.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
58,000
102
1,058
6
38,667
392
4,089
8
29,000
1,024
10,667
10
23,200
2,154
22,442
15
15,467
8,323
86,703
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 232,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.494 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
