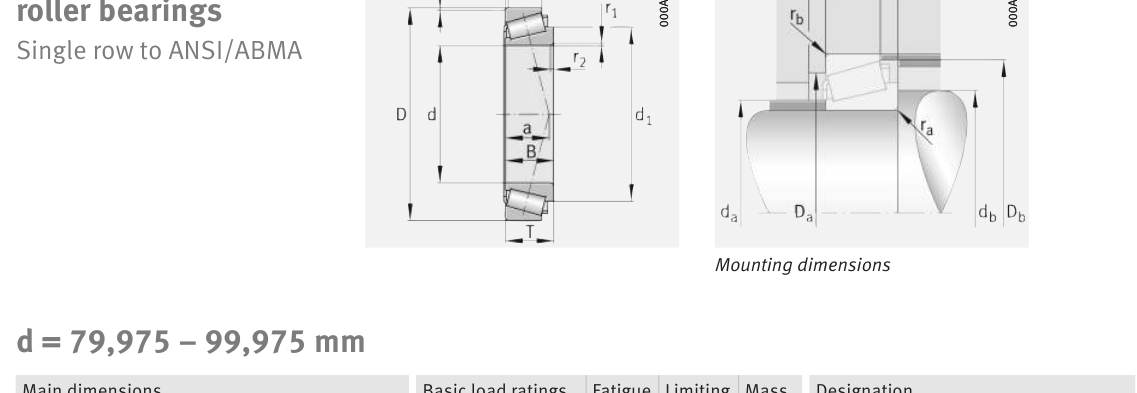

Original catalogue drawing - FAG Schaeffler HR 1, page 626
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
82.55
3.25
D
Outside diameter
133.35
5.25
B
Inner-ring / bearing width
39.688
1.5625
T
Overall assembly width
39.688
1.5625
C
Cup / outer-ring width
32.545
1.2813
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
82.55
Outside dia. D (mm)
133.35
Width B (mm)
39.688
Overall width T (mm)
39.688
Cup width C (mm)
32.545
Inner-ring OD d1 (mm)
110.5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
41140
Basic static load rating Cor (lbs)
69691
Basic dynamic load rating Cr (N)
183000
Basic static load rating C0r (N)
310000
Basic dynamic axial rating Ca (N)
5
Fatigue limit load Cur (N)
39500
Factor e
0.4
Factor Y
1.49
Factor Y0
0.82
Limiting speed nG (rpm)
5,000
Effective load centre a (mm)
32
Weight
Weight (kg)
2.32
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
3.6
Shaft shoulder da (mm)
92
Shaft shoulder db (mm)
99
Housing shoulder Da (mm)
118
Housing shoulder Db (mm)
128
Housing fillet ra max (mm)
3.6
Fillet rb max (mm)
3.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
45,750
102
1,058
6
30,500
392
4,089
8
22,875
1,024
10,667
10
18,300
2,154
22,442
15
12,200
8,323
86,703
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 183,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.626 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
