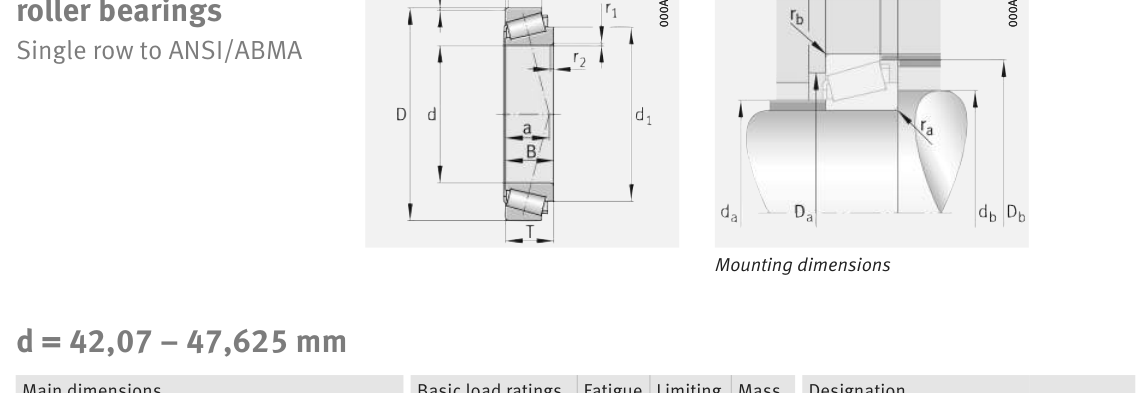

Original catalogue drawing - FAG Schaeffler HR 1, page 618
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
44.987
1.7711
D
Outside diameter
104.986
4.1333
B
Inner-ring / bearing width
31.75
1.25
T
Overall assembly width
32.512
1.28
C
Cup / outer-ring width
23.368
0.92
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
44.987
Outside dia. D (mm)
104.986
Width B (mm)
31.75
Overall width T (mm)
32.512
Cup width C (mm)
23.368
Inner-ring OD d1 (mm)
82.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
26078
Basic static load rating Cor (lbs)
35295
Basic dynamic load rating Cr (N)
116000
Basic static load rating C0r (N)
157000
Basic dynamic axial rating Ca (N)
3
Fatigue limit load Cur (N)
19200
Factor e
0.78
Factor Y
0.77
Factor Y0
0.42
Limiting speed nG (rpm)
6,600
Effective load centre a (mm)
34
Weight
Weight (kg)
1.43
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
2.5
Shaft shoulder da (mm)
60
Shaft shoulder db (mm)
68
Housing shoulder Da (mm)
86
Housing shoulder Db (mm)
100
Housing fillet ra max (mm)
2.5
Fillet rb max (mm)
2.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,200 rpm
4
29,000
102
770
6
19,333
392
2,973
8
14,500
1,024
7,758
10
11,600
2,154
16,321
15
7,733
8,323
63,057
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 116,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.618 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
