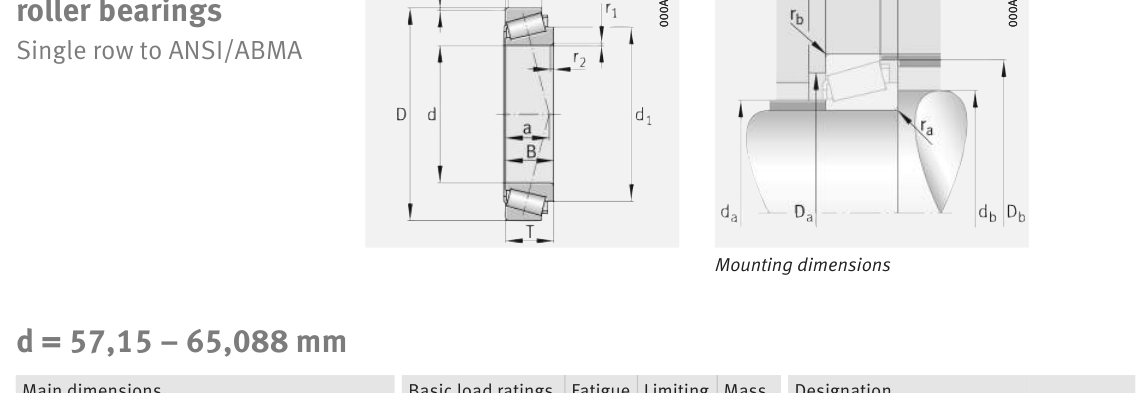

Original catalogue drawing - FAG Schaeffler HR 1, page 622
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
59.987
2.3617
D
Outside diameter
130.175
5.125
B
Inner-ring / bearing width
30.924
1.2175
T
Overall assembly width
34.1
1.3425
C
Cup / outer-ring width
23.812
0.9375
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
59.987
Outside dia. D (mm)
130.175
Width B (mm)
30.924
Overall width T (mm)
34.1
Cup width C (mm)
23.812
Inner-ring OD d1 (mm)
97.3
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
32822
Basic static load rating Cor (lbs)
38442
Basic dynamic load rating Cr (N)
146000
Basic static load rating C0r (N)
171000
Basic dynamic axial rating Ca (N)
4
Fatigue limit load Cur (N)
20600
Factor e
0.82
Factor Y
0.73
Factor Y0
0.4
Limiting speed nG (rpm)
5,400
Effective load centre a (mm)
42
Weight
Weight (kg)
2.05
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
3.6
Shaft shoulder da (mm)
74.4
Shaft shoulder db (mm)
84
Housing shoulder Da (mm)
109
Housing shoulder Db (mm)
123.6
Housing fillet ra max (mm)
3.6
Fillet rb max (mm)
3.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,800 rpm
4
36,500
102
941
6
24,333
392
3,634
8
18,250
1,024
9,481
10
14,600
2,154
19,948
15
9,733
8,323
77,069
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 146,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.622 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
