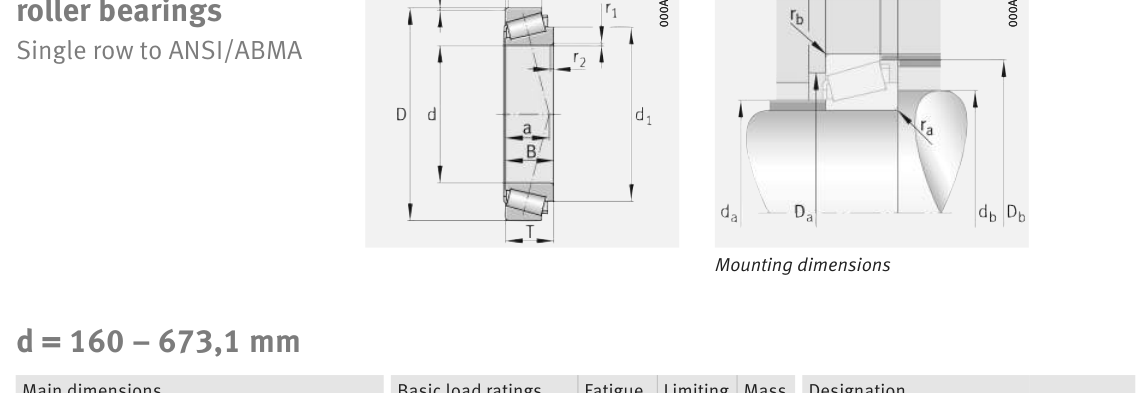

Original catalogue drawing - FAG Schaeffler HR 1, page 630
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
223.838
8.8125
D
Outside diameter
295.275
11.625
B
Inner-ring / bearing width
46.038
1.8125
T
Overall assembly width
46.038
1.8125
C
Cup / outer-ring width
34.925
1.375
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
223.838
Outside dia. D (mm)
295.275
Width B (mm)
46.038
Overall width T (mm)
46.038
Cup width C (mm)
34.925
Inner-ring OD d1 (mm)
263.5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
83179
Basic static load rating Cor (lbs)
186591
Basic dynamic load rating Cr (N)
370000
Basic static load rating C0r (N)
830000
Basic dynamic axial rating Ca (N)
5
Fatigue limit load Cur (N)
82000
Factor e
0.5
Factor Y
0.66
Factor Y0
1.2
Limiting speed nG (rpm)
2,170
Effective load centre a (mm)
64
Weight
Weight (kg)
8.29
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
3.6
Shaft shoulder da (mm)
235
Shaft shoulder db (mm)
241
Housing shoulder Da (mm)
275
Housing shoulder Db (mm)
288
Housing fillet ra max (mm)
3.6
Fillet rb max (mm)
3.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 700 rpm
4
92,500
102
2,419
6
61,667
392
9,345
8
46,250
1,024
24,381
10
37,000
2,154
51,296
15
24,667
8,323
198,178
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 370,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.630 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
Send us the quantity you need and we will come back with price and
lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
